SK-1200
SECURE-NET
8515809090
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
| Quantity: | |
|---|---|

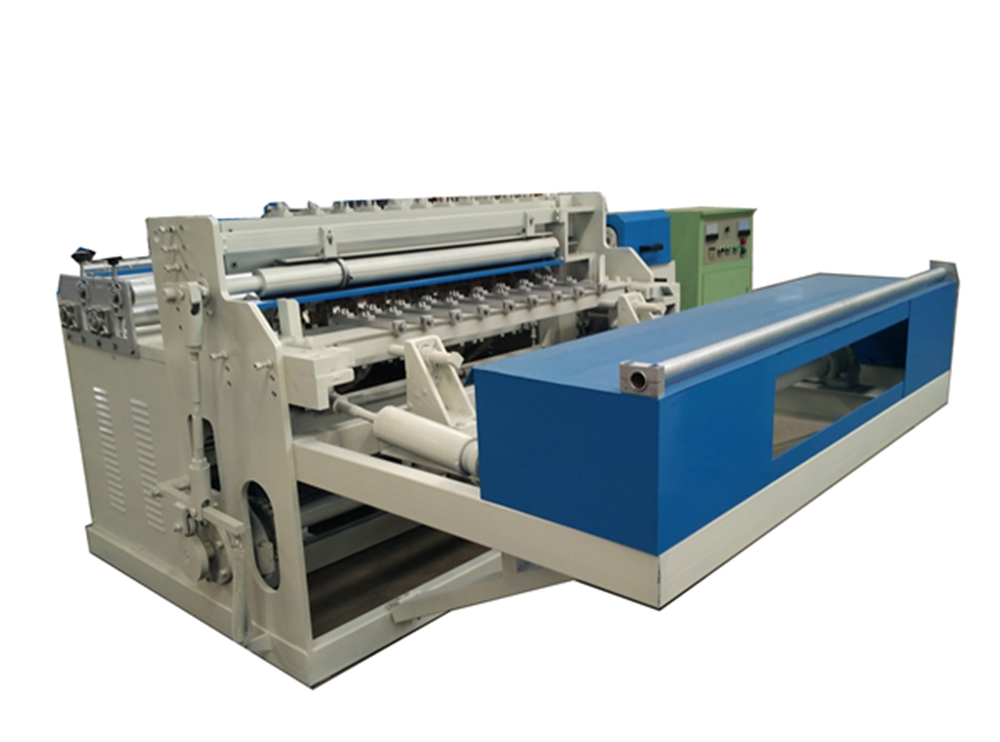

1.5-2.4mm Automatic Building Mesh Welding Machine
This wire mesh welding machine is full automatic machine line,the details for welder as follows:
1.Cross Wire Feeding system: On the side of the machine installed a small weft wires straightening cutting device and accurate positioning device. Cross wires through the machine are straightened and cut fixed-length. This process of wire straightening and cutting is continuous, then the cross wires falling automatically.
2.Line Wire Feeding system: Coil wires are put on the wire tray, inserting one side of the coil wire into through-hole solder wire mesh machine, then the entire welding process is automatic.
3.Welding system: The machine welding system adopts synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuit, which has stable function, firm welded points and without welded tracks. The control cabinet is button control. The greatest advantage of this machine is you can adjust the distance of weft wire at random on the same piece wire mesh panel.
4.Pulling mesh system：The machine welding system adopts synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuit, which has stable function, firm welded points and without welded tracks. The control cabinet is button control. The greatest advantage of this machine is you can adjust the distance of weft wire at random on the same piece wire mesh panel.
Program |
HWJX1200 | |
|
Wire diameter |
1.5-2.4mm |
|
Max mesh width | ≤1200 |
|
Number of electrodes | 25 |
|
Mesh Length | 0.7-6.0m |
|
Cross wire spacing | 50-200mm |
|
Line wire spacing | 50-200mm |
|
Electric capacity | 85KVA x 2 |
|
Work strokes | 60-80/min |
|
Control System | SCM |

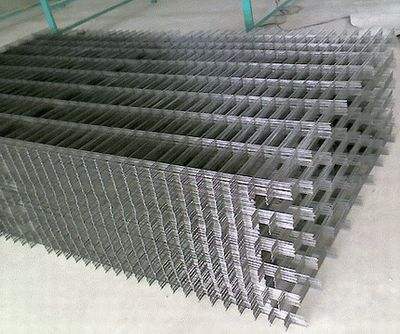

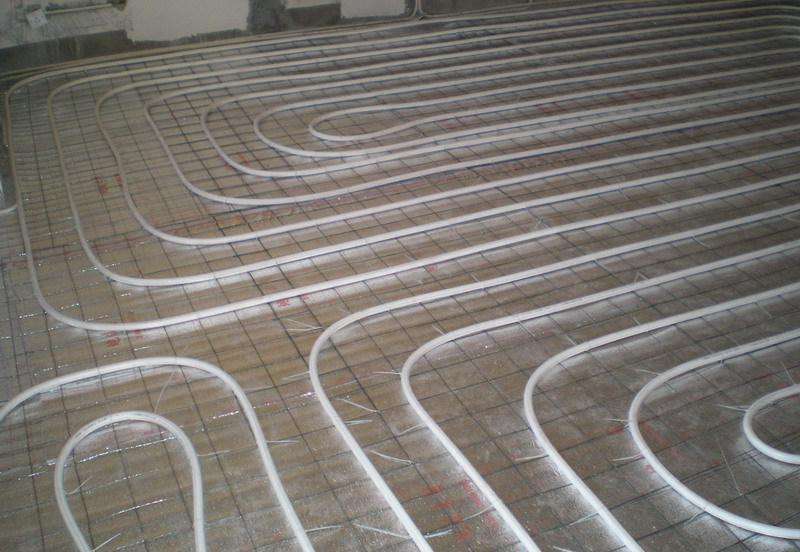

Application of welded meshs:
1.5-2.4mm Automatic Building Mesh Welding Machine
This wire mesh welding machine is full automatic machine line,the details for welder as follows:
1.Cross Wire Feeding system: On the side of the machine installed a small weft wires straightening cutting device and accurate positioning device. Cross wires through the machine are straightened and cut fixed-length. This process of wire straightening and cutting is continuous, then the cross wires falling automatically.
2.Line Wire Feeding system: Coil wires are put on the wire tray, inserting one side of the coil wire into through-hole solder wire mesh machine, then the entire welding process is automatic.
3.Welding system: The machine welding system adopts synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuit, which has stable function, firm welded points and without welded tracks. The control cabinet is button control. The greatest advantage of this machine is you can adjust the distance of weft wire at random on the same piece wire mesh panel.
4.Pulling mesh system：The machine welding system adopts synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuit, which has stable function, firm welded points and without welded tracks. The control cabinet is button control. The greatest advantage of this machine is you can adjust the distance of weft wire at random on the same piece wire mesh panel.
Program |
HWJX1200 | |
|
Wire diameter |
1.5-2.4mm |
|
Max mesh width | ≤1200 |
|
Number of electrodes | 25 |
|
Mesh Length | 0.7-6.0m |
|
Cross wire spacing | 50-200mm |
|
Line wire spacing | 50-200mm |
|
Electric capacity | 85KVA x 2 |
|
Work strokes | 60-80/min |
|
Control System | SCM |
Application of welded meshs:
