Here introduce more details about the CS-C Single barbed wire machine

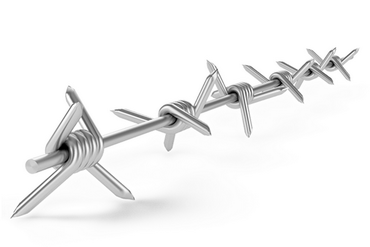

CS-C Single barbed wire machine can single barbed wire which
is widely used in national defense,railway, highway, agriculture, animal husbandry and
other industries.
The material suitable for this machine:
galvanized wire, PVC coated wire, stainless steel wire, low carbon steel wire etc.
Features of the machine
1. It is of low-noise, high-safety and high-efficiency.
2. It is easy to operate and of high-capacity.
3.Twisted number and barbed space can be customized according to customer's requirement.
4. It is inexpensive.
Parameter
Model | CS-C Type |
Motor power | 2.2kw |
Main drive shaft speed | 355r/min |
Wire diameter | 1.6mm-2.8mm |
Barbed wire diameter | 1.6mm-2.2mm |
Barbed space | 102mm(4inch)/127mmm(5inch) |
Twisted number | 7 |
Theoretical production | 40kg/h |
Total weight | 1000kg |
Dimension | 3100mm*1000mm*1150mm |
