SN-AC
SECURE-NET
8515809090
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
Availability: | |
---|---|
Quantity: | |

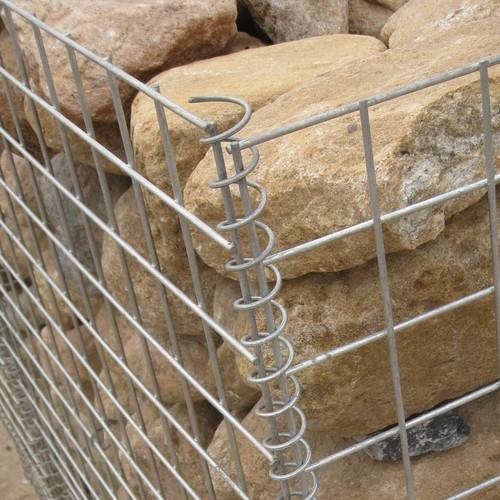

Welded Mesh Gabion Box is also named gabions, rock gabions, welded wire gabions, welded mesh gabions, gabion boxes, gabion mattresses, gabion basket, galfan coated welded gabions, Welded mesh gabion box.
Full set Welded Gabion Mesh Welding Machine Line insist of :
-Wire mesh welding machine
-Wire straightening&cutting machine
-Mesh cutting machine
-Wire bending machine
-Spiral machine
Wire mesh welding machine
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.
Program |
SN-AC1500 |
SN-AC2000 |
SN-AC2500 | |
|
Wire diameter |
2.5-5.0mm | 2.5-5.0mm | 2.5-5.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
Number of electrodes | 31 | 41 | 48 | |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 50-300mm | 50-300mm | 50-300mm |
Electric capacity | 500KVA | 630KVA | 800KVA | |
Work strokes | 40-60/min | 40-60/min | 40-60/min | |
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |
Wire straightening&cutting machine
This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire.
Wire diameter:2.5-5.0mm
Cutting length: as request.

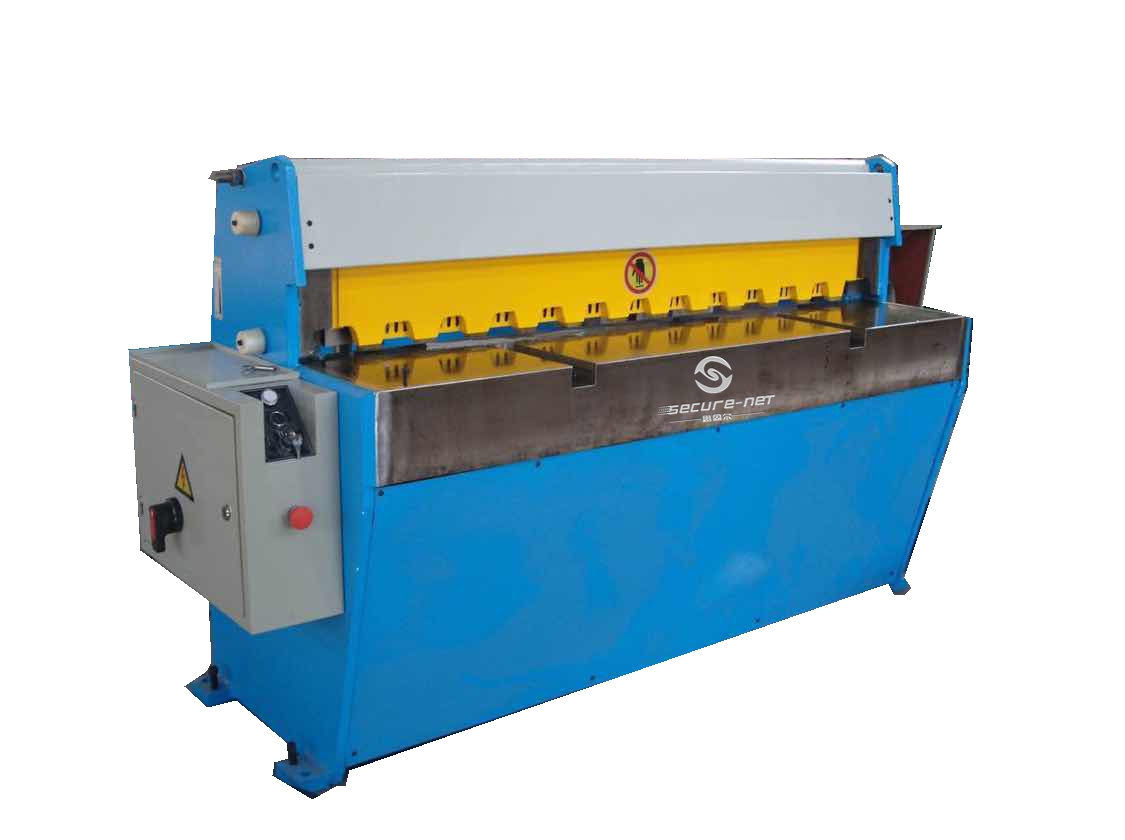

Mesh cutting machine
High shear precision; after the gear rack gear transmission (manual,electric) control the size of precision, transmission using electromagnetic sucker brake, the motor and the closed gear box are connected with the shaft rotation, and the structure is compact; the machine can be controlled by a single, continuous, pedal switch. Energy saving, reduce loss, is a new generation of energy saving products, suitable for sheet metal processing, APS,PP films and other non-metallic materials processing shear, it is a special equipment for plastic production line.
Items | Cutting thickness/mm | Cutting length /mm | Angle of upper knife/° | Strokes /mm-1 | Power /kw |
| ||
Medium carbon steel | Stainless steel | Aluminum plate | ||||||
QH11D-3X800 | 3 | 1.5 | 4 | 800 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1000 | 3 | 1.5 | 4 | 1000 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1300 | 3 | 1.2 | 4 | 1300 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1500 | 3 | 1.2 | 4 | 1500 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1600 | 3 | 1.2 | 4 | 1600 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1700 | 3 | 1.2 | 4 | 1700 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X1800 | 3 | 1.2 | 4 | 1800 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X2000 | 3 | 1.2 | 4 | 2000 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X2100 | 3 | 1.2 | 4 | 2100 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X2300 | 3 | 1.2 | 4 | 2300 | 1.5 | 47 | 5.5 | ±0.15 |
QH11D-3X2500 | 3 | 1.2 | 4 | 2500 | 1.5 | 47 | 7.5 | ±0.15 |
QH11D-3X3050 | 3 | 1.5 | 4 | 3050 | 1.5 | 47 | 11 | ±0.15 |
QH11D-3X3200 | 3 | 1.2 | 4 | 3200 | 2 | 47 | 15 | ±0.15 |

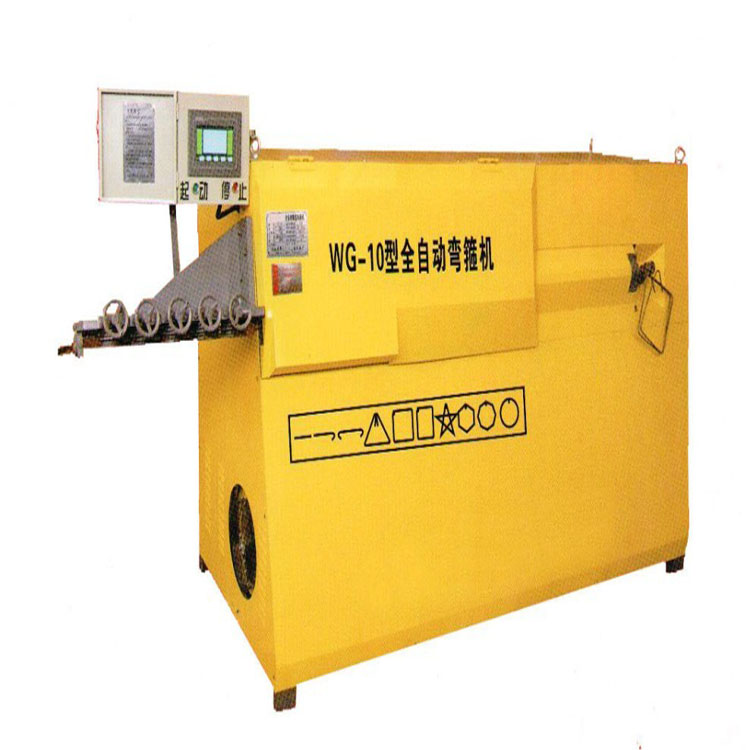

Wire bending machine
Our CNC Automatic Steel Bar Bending Machine is designed by our engineers who have more than 10 years' practical experience.
It has the comprehensive process capacity, which can bend steel bar forwarder,up and down.
It can bend a maximum diameter of 12 mm steel bar.
It is working with a series of automatic process of the uninterrupted material feeding, straightening,bending and cutting.
This product is widely used in construction industry, large steel bar processing plant ,high speedrailway, expressway, water conservancy construction and so on.
Features:
1. CNC automatic touch panel
2. Completely processing of steel bar feeding,straightening,bending and cutting
3. Bending more than 500 types according to design
4. Safe operation,high efficiency and high precision
5. Widely use
Parameter:
Steel Bar Bending Machine | |
DIA of processing single rebar | 4-12mm round steel bar |
4-10mm reformed steel bar | |
DIA of processing double rebar | 4-10mm round steel bar |
4-8mm reformed steel bar | |
Max bending angle | 180° |
Max traction speed | 60m/min |
Max bending speed | 800°/s |
Length accuracy | 1mm |
Angle accuracy | 1° |
Processing shape | 500 types |
Direction of processing | forward,up and down |
DIA of central axis | 16mm,18mm,20mm |
Working temperature | -5℃-40℃ |
Max pneumatic pressure | 0.8mpa |
Equipment power | 21kw/380V/60Hz |
Average power consumption | 3-5 kw/h |
Weight | 1380kg |
Dimension | 3210*1000*1700mm |
Spiral machine
