SN-YH-QD1200
SECURE-NET
8515809090
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
| Quantity: | |
|---|---|

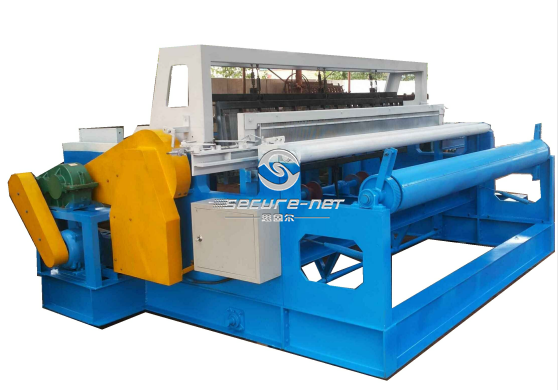

Mult function crimped wire mesh machine
This machine was designed to meet the market demand .it absorbed the advantage the of domestic and foreign similar netting machine, using the non-shuttle shaftment to lead the tram, and the warp to be crimped,the tram to be crimped and weaved at the same time.The whole process is simple, the noise is lower, high efficiency, and all the wires that the diam is ￠0.4mm-￠1.0 mm,and the aperture is 1 mesh /inch - 20 mesh/inch ,the weaving width is 1-2.3m can be weaved. The products are widely used in the filtering of liquid and solid in the fields of petroleum, chemical, mining and others.
Weaving width | Machine size (m) | Motor (KW) | Machine weight(kg) |
1.0（44“） | 2.5x2.5x1.5 | 0.75 | 1000 |
1.2（52“） | 2.8x2.5x1.5 | 1.1 | 1200 |
1.3（56“） | 3.5x2.5x1.7 | 1.1 | 1300 |
1.5（63“） | 4x3x1.7 | 1.5 | 1400 |
1.8（75“） | 4x3x1.7 | 1.5 | 1500 |
2.0（212“） | 4.2x3x1.8 | 2.2 | 1800 |
2.3（212“） | 4.2x3x1.8 | 2.2 | 2000 |

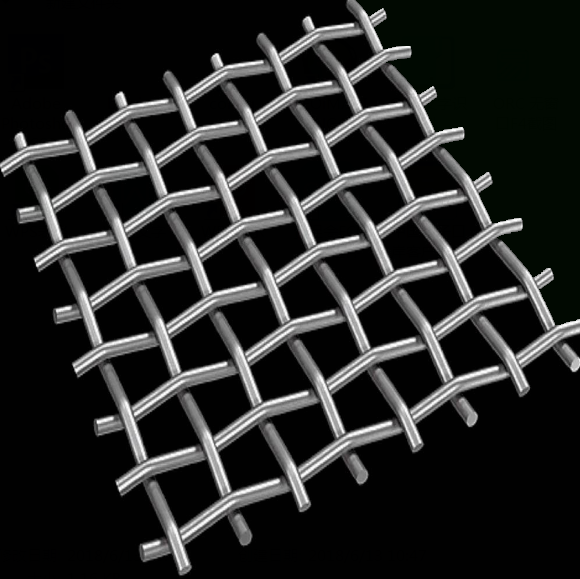

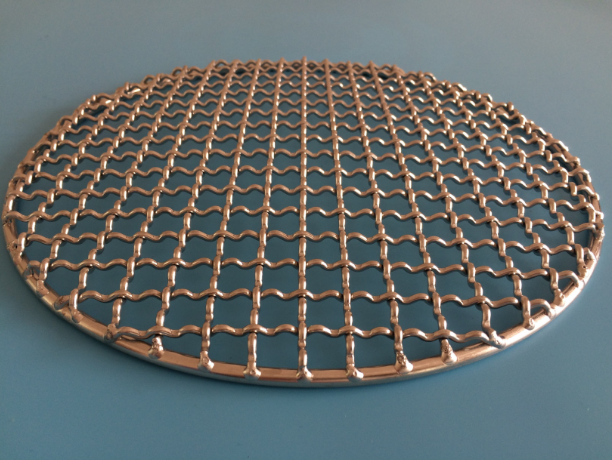

Application of Mult function crimped wire mesh machine:
Mult function crimped wire mesh machine
This machine was designed to meet the market demand .it absorbed the advantage the of domestic and foreign similar netting machine, using the non-shuttle shaftment to lead the tram, and the warp to be crimped,the tram to be crimped and weaved at the same time.The whole process is simple, the noise is lower, high efficiency, and all the wires that the diam is ￠0.4mm-￠1.0 mm,and the aperture is 1 mesh /inch - 20 mesh/inch ,the weaving width is 1-2.3m can be weaved. The products are widely used in the filtering of liquid and solid in the fields of petroleum, chemical, mining and others.
Weaving width | Machine size (m) | Motor (KW) | Machine weight(kg) |
1.0（44“） | 2.5x2.5x1.5 | 0.75 | 1000 |
1.2（52“） | 2.8x2.5x1.5 | 1.1 | 1200 |
1.3（56“） | 3.5x2.5x1.7 | 1.1 | 1300 |
1.5（63“） | 4x3x1.7 | 1.5 | 1400 |
1.8（75“） | 4x3x1.7 | 1.5 | 1500 |
2.0（212“） | 4.2x3x1.8 | 2.2 | 1800 |
2.3（212“） | 4.2x3x1.8 | 2.2 | 2000 |
Application of Mult function crimped wire mesh machine:
