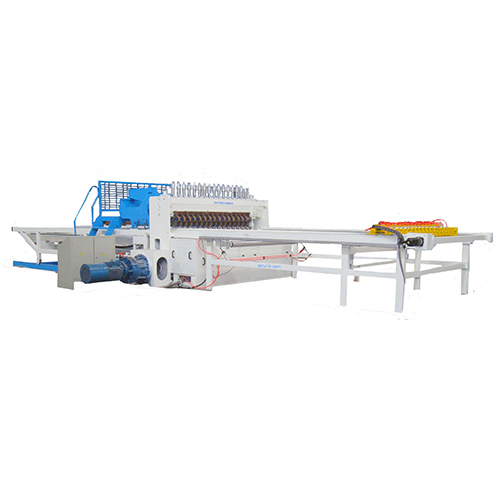

Reinforcing Mesh Welding Machine Line

  • REL-2500
  • SECURE-NET
  • 8515809090
  • SECURE-NET
  • CHINA
  • SGS
  • Any port in China
  • 1
  • 30sets
  • T/T,L/C
Availability:
Quantity:

Multi Point reinforcing concrete mesh welding machine production line insist of :

-Reinforcing mesh welding machine

-Wire straightening&cutting machine

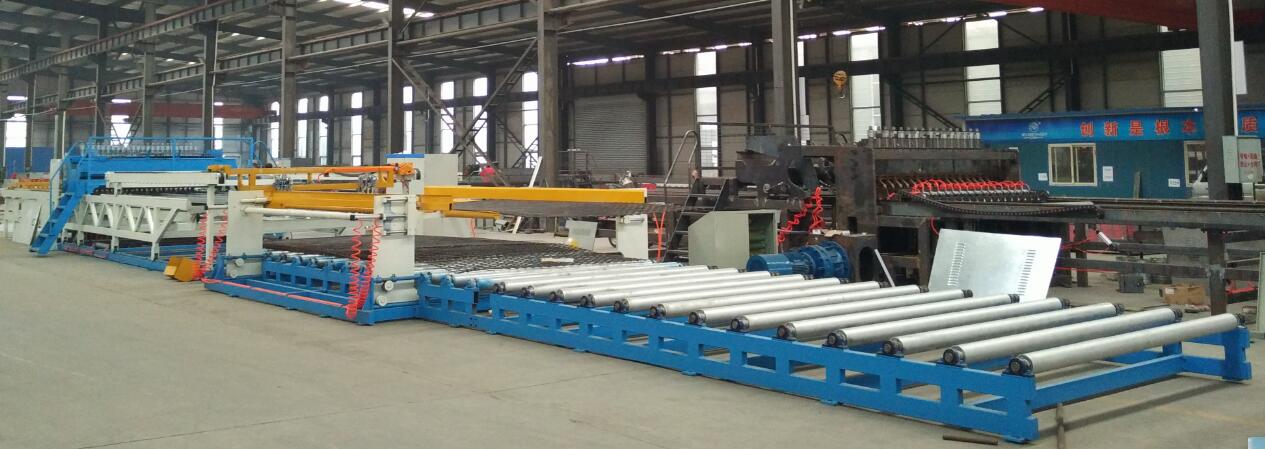

                                                                                 1.Reinforcing mesh welding machine Details:

Reinforcing mesh welding machine also called rebar mesh welding machine,Construction mesh machine.It is used to make steel rebar mesh,road mesh,building constrction mesh etc.

TIM图片20190307160418

1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.


Program



    HWJX1500



    HWJX2000



        HWJX2500




Wire diameter



    5.0-12.0mm


    5.0-12.0mm



         5.0-12.0mm




Max mesh width



    ≤1500


     ≤2000


         ≤2500




Number of electrodes


         14


         18



           24




Mesh Length


     0.7-12.0m


    0.7-12.0m


          0.7-12.0m




Cross wire spacing



    50-300mm


    50-300mm


        50-300mm




Line wire spacing


     50-300mm


      50-300mm


        50-300mm




Electric capacity



      500KVA


      630KVA


           800KVA




Work strokes


     40-60/min


      40-60/min


          40-60/min




Control System

PLC programmable

controller

PLC programmable

controller

PLC programmable

controller

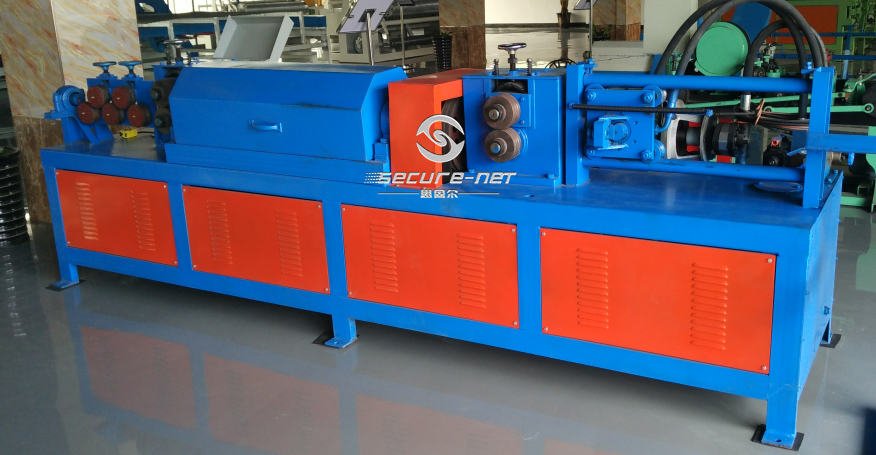

                                                                                    2.Wire straightening&cutting machine details:


Straightening and cutting machine for steel bars is suitable for the straightening and cutting of wire rod or cold-drawn steel bar in prefabricated component factory, steel bar processing and distribution factory and construction site. After loading the machine for automated operation, the operator can manage multiple machines at the same time, greatly improving the production efficiency, but also hardware, cable and other manufacturers must have special equipment.


TIM截图20190308143707


fb0363468811fa8c8aa0da855ef4333e_r

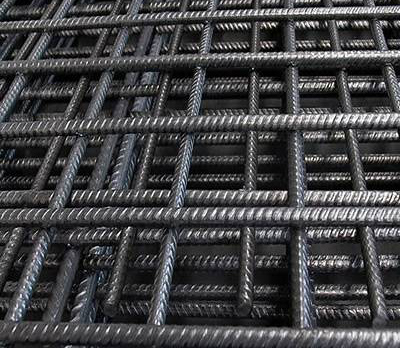

concrete-reinforcing-square-mesh-  Steel-fabric
