Nail making machine

  • SN-Z94
  • SECURE-NET
  • 8463300000
  • SECURE-NET
  • CHINA
  • SGS
  • Any port in China
  • 1
  • 30sets
  • T/T,L/C
Quantity:

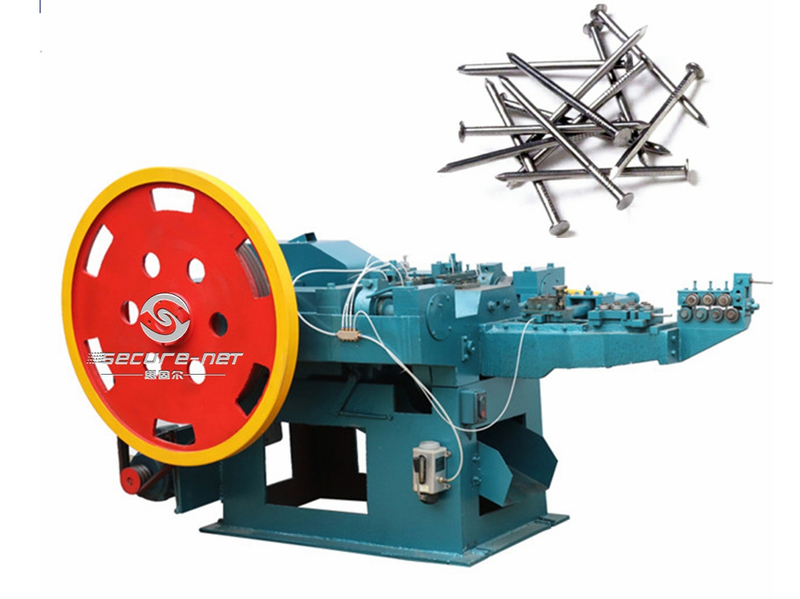

Automatic Nail Making Machine to Make Nails/Wire Steel Iron Nail  Machine

Z94-C Type New Generation, High Speed, Low Noise, Automatic Nutomatic Nail Making Machine. This Z94 series, new type C nail making machine plunger structure and oil pipe lubrication so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of clout nails and other special nails used for high speed coilnail welder and nail gun.


he Advantage Of Z94-C Nail Making Machine


1. The machine is made from bearing, which make the machine less impact and low noise.

2. The machine can feed the raw material automatically.

3. The machine can add lubricating oil automatically.

4. One model nail making machine can make different size of nails.

5. The warranty time of our machines is 1 years

Z94-C series nail making machine specifications:


Model
SN-Z94-1c
SN-Z94-2c
SN-Z94-3c
SN-Z94-4c
SN-Z94-5.5c
SN-Z94-6.5c
Diameter of nail(mm)
0.9-1.6
1.2-2.8
1.8-3.4
2.8-4.5
3.7-5.5
4.6-6.5
Length of nail(mm)
9-25
16-50
30-75
50-100
80-150
100-200
Capacity(Pieces/min)
450
350
320
280
200
160
Power(Kw)
1.5
2.2
3
4
5.5
6.5
Voltage:
380V
50HZ
380V
50HZ
380V
50HZ
380V
50HZ
380V
50HZ
380V
50HZ
Weight(kg)
800
1200
1400
2000
2500
5000
Dimension (m)
1.4*1*1.2
1.6*1.2*1.3
1.8*1.2*1.4
2.1*1.5*1.5
2.3*1.5*1.6
3.2*2.2*2.2
