Multi Point reinforcing concrete mesh welding machine production line insist of :

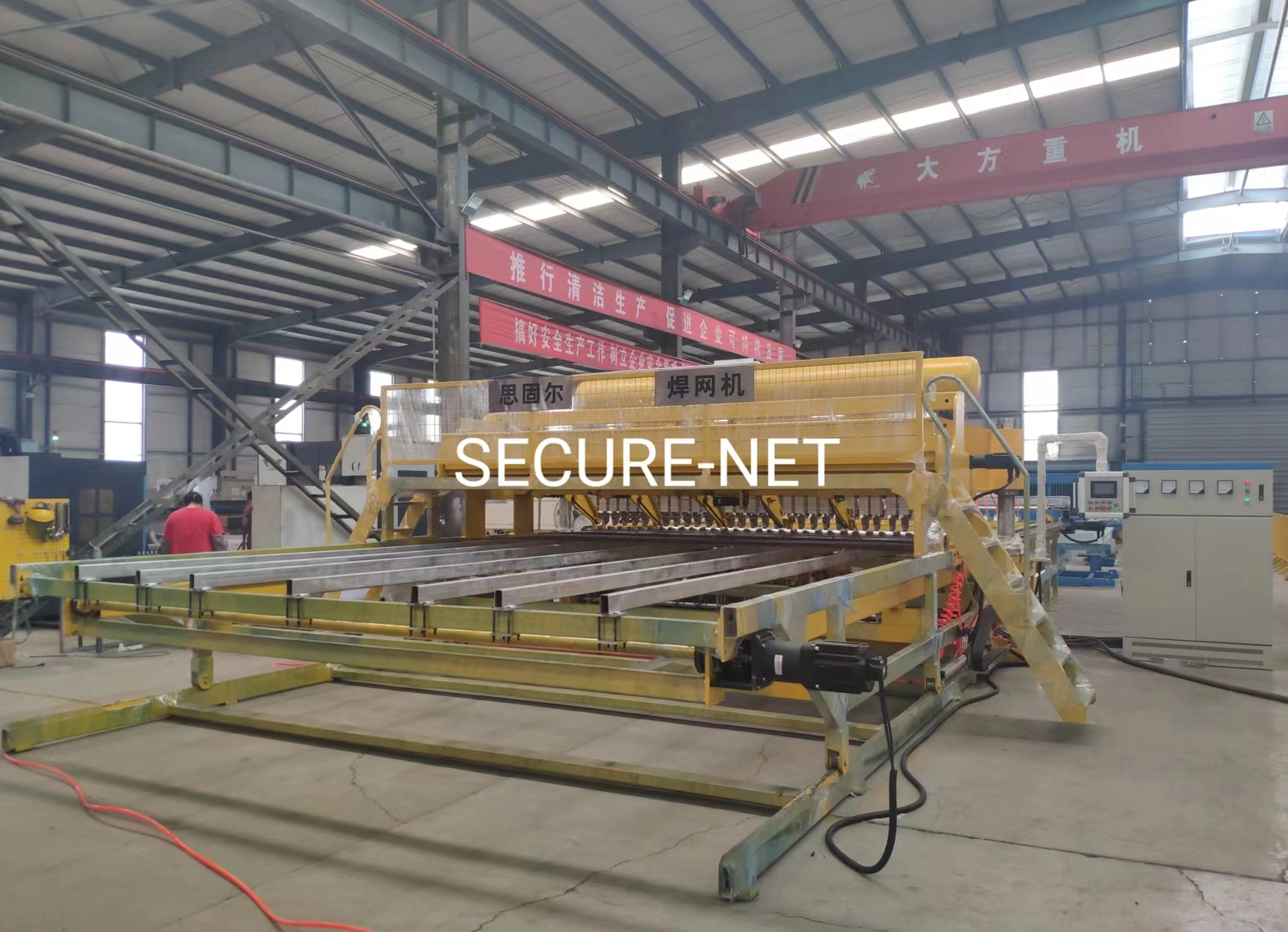

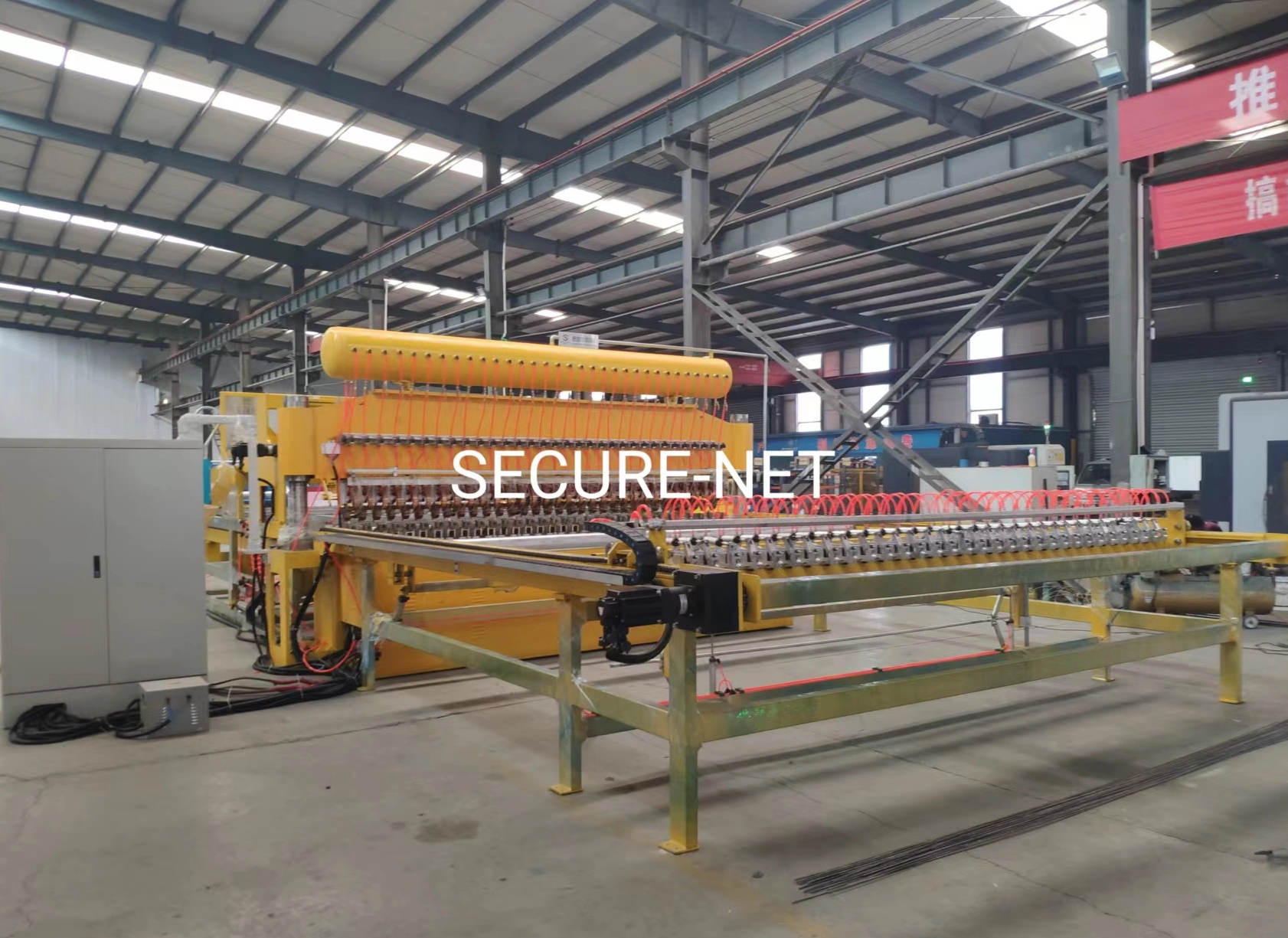

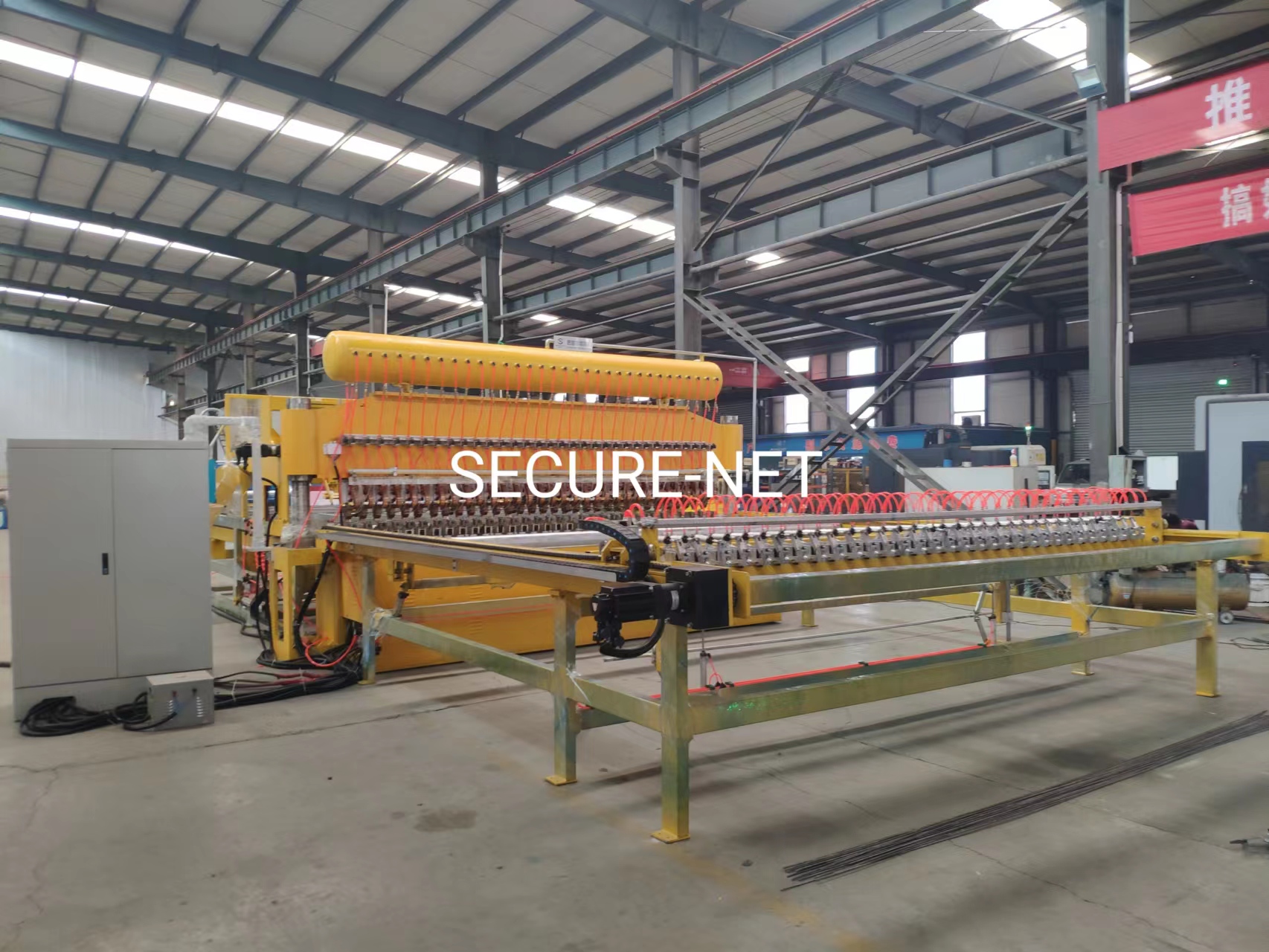

-4M Pneumatic Reinforcing mesh welding machine
-Wire straightening&cutting machine
1.Reinforcing mesh welding machine Details:

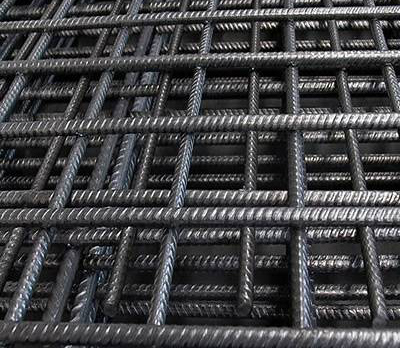

Pneumatic Reinforcing mesh welding machine also called rebar mesh welding machine,Construction mesh machine.It is used to make steel rebar mesh,road mesh,building constrction mesh etc.
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.

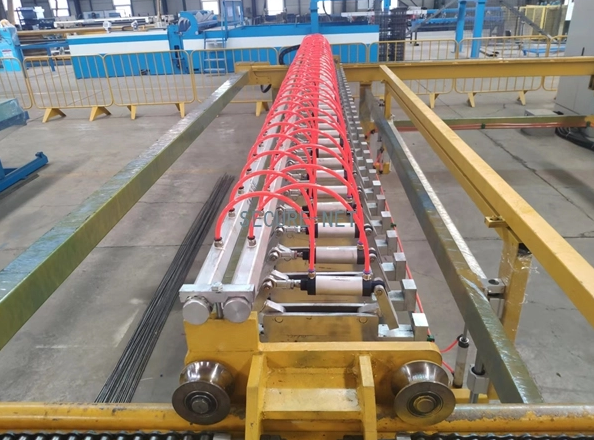

4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.

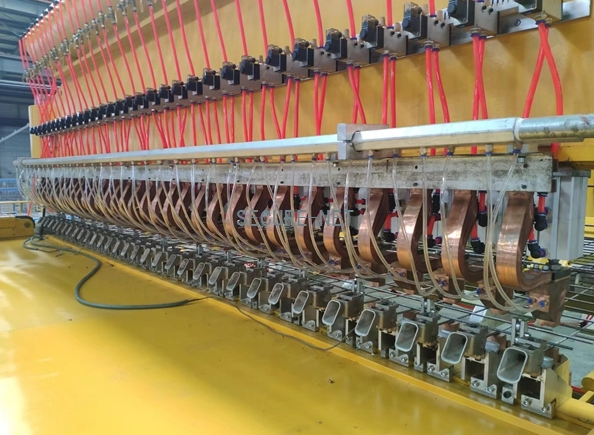

6.The water cooling system of electrode is designed, prolong the service time of electrode.
Program |
HWJX2000 |
HWJX2500 |
HWJX4000 | |
|
Wire diameter |
6.0-12.0mm | 6.0-12.0mm |
6.0-12.0mm |
|
Max mesh width |
≤2000 | ≤2500 | ≤4000 |
|
Number of electrodes | 21 | 26 |
41 |
|
Mesh Length | 0.7-12.0m | 0.7-12.0m | 0.7-12.0m |
|
Cross wire spacing |
50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 100-300mm | 100-300mm | 100-300mm |
|
Electric capacity |
KVA | KVA | KVA |
|
Work strokes | 40-60/min | 40-60/min | 40-60/min |
|
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |

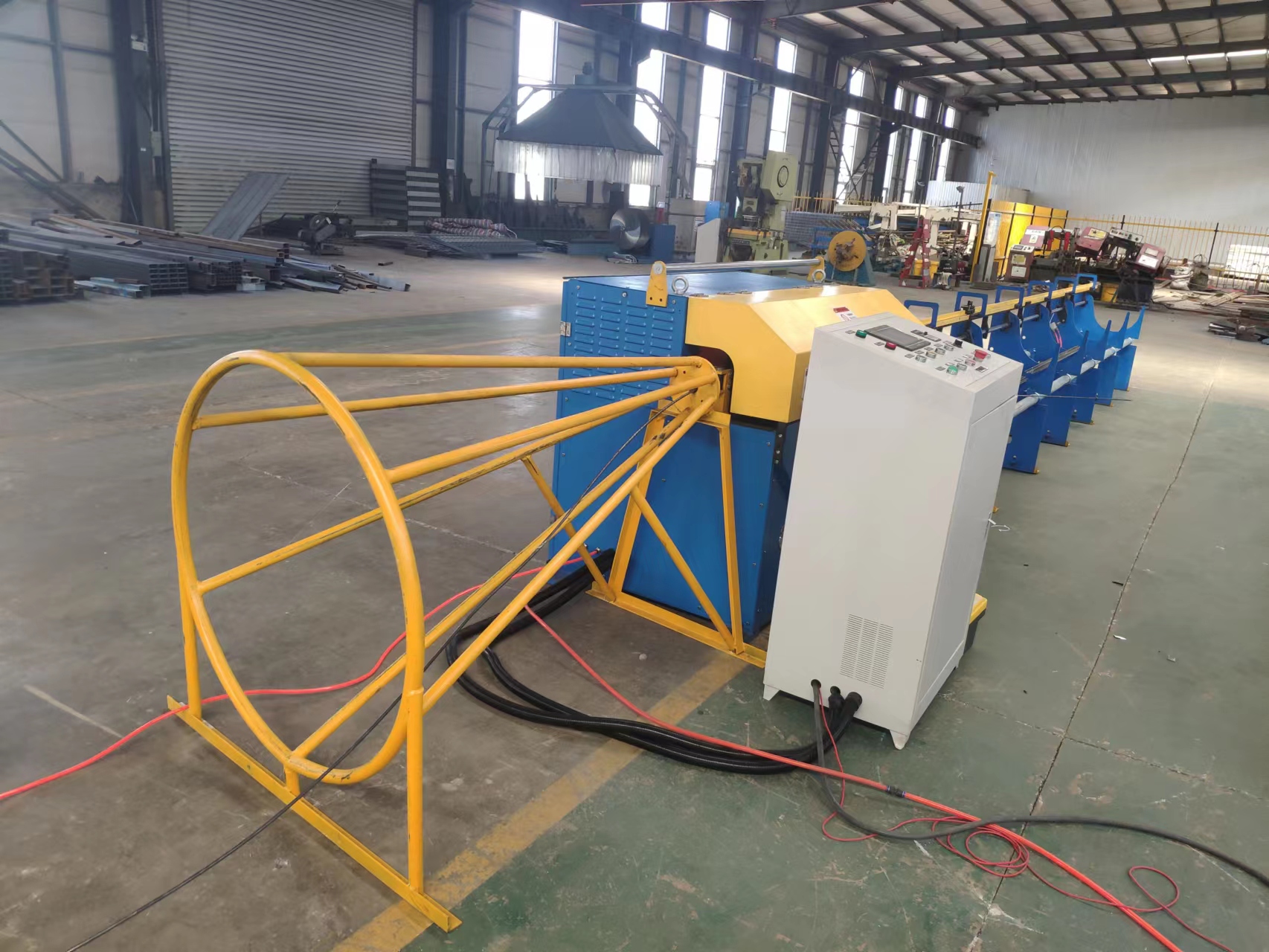

2.Wire straightening&cutting machine details:
Straightening and cutting machine for steel bars is suitable for the straightening and cutting of wire rod or cold-drawn steel bar in prefabricated component factory, steel bar processing and distribution factory and construction site. After loading the machine for automated operation, the operator can manage multiple machines at the same time, greatly improving the production efficiency, but also hardware, cable and other manufacturers must have special equipment.
