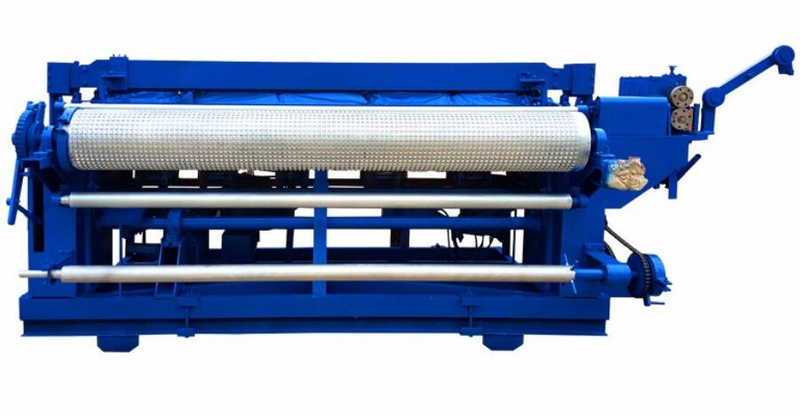

Rolling Mesh Welding Machine

  • SN-DH
  • SECURE-NET
  • 8515809090
  • SECURE-NET
  • CHINA
  • SGS
  • Any port in China
  • 1
  • 30sets
  • T/T,L/C
Quantity:

Full set rolling mesh welding machine insist of :

-Welded wire mesh machine

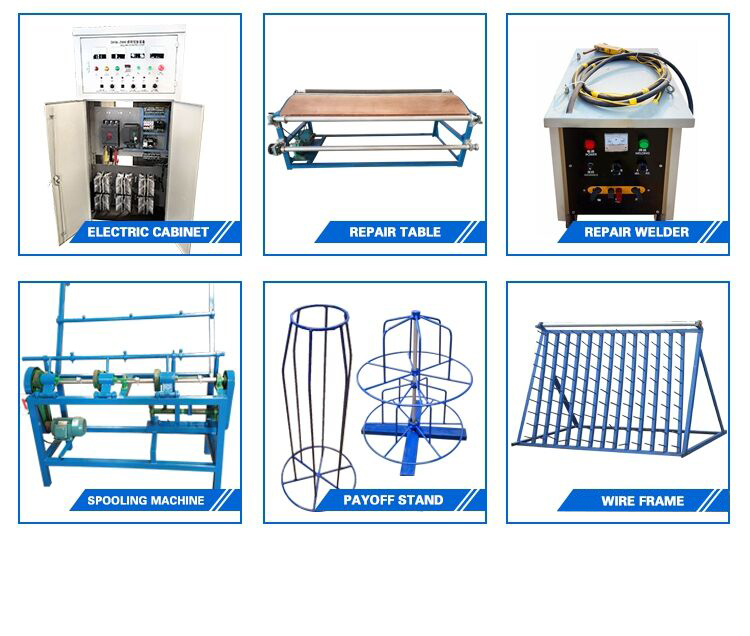

-Auxiliary Machine

  1. Electric cabinet

  2. Repair table

  3. Repair welder

  4. Spooling machine

  5. Pay off stand

  6. Wire frame

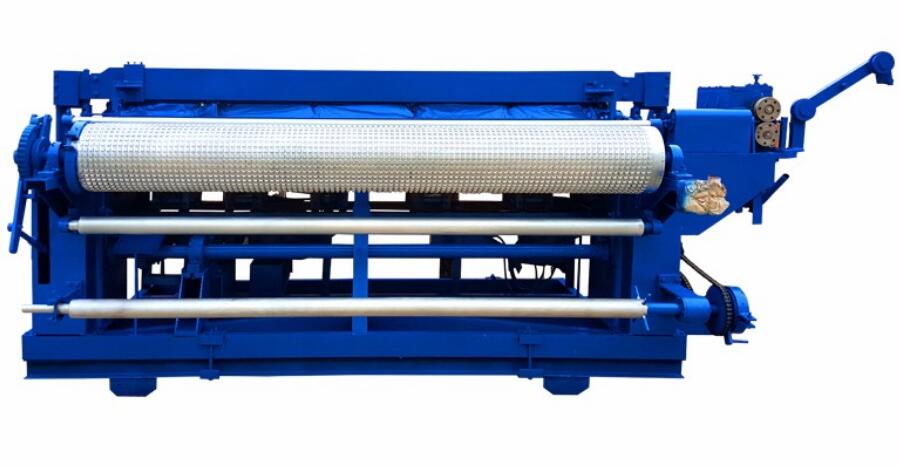

                                                                                Welded wire mesh machine

                                                   welded wire mesh machine

1. Welded wire mesh machine is full automatic to feed wires, weld mesh, cut edge and roll mesh.

2. Welded wire raw material is applicable for low-carbon steel wire, galvanizing wire and stainless steel.

3. Welding machine has advantages of reasonable design, low noise, stable working, easier operation etc.

4. Welded mesh size is precise and can be set according to customers’ requirements.

5. SS wire mesh welding machine adopts sealed &water cooling welding transformers, the scoria can not easily goes in.

The stainless steel construction welding machine mainly used for the construction mesh, breeding mesh (rabbit cage, fox cage, mink cage etc.)




Program



Light type



Heavy type




Wire diameter



1.0-2.2mm


0.8-3.0mm




Max mesh width


≤7'


≤8'




Number of electrodes


As request


As request




Mesh Length


150m


100m




Cross wire spacing


1"-4"


1"-8"




Line wire spacing


1"-4"


1"-8"




Electric capacity


85KVA*7


85KVA*8




Work strokes


120-140times/min


80-120times/min




Control System


SCM


SCM

                                                                                                               Auxiliary Machine:                                          welded machine parts

fb0363468811fa8c8aa0da855ef4333e_r

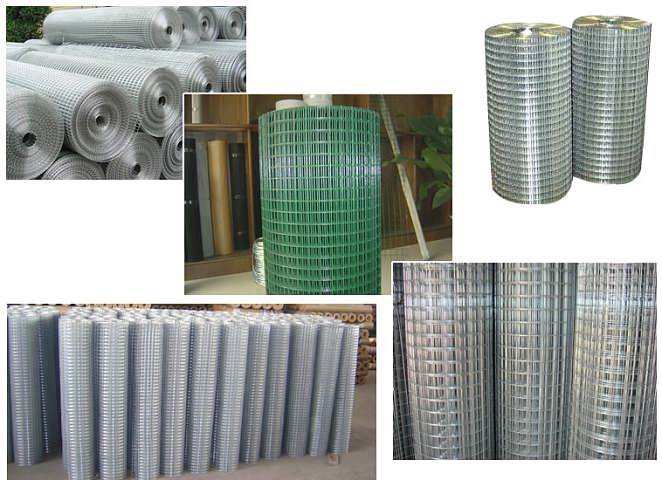

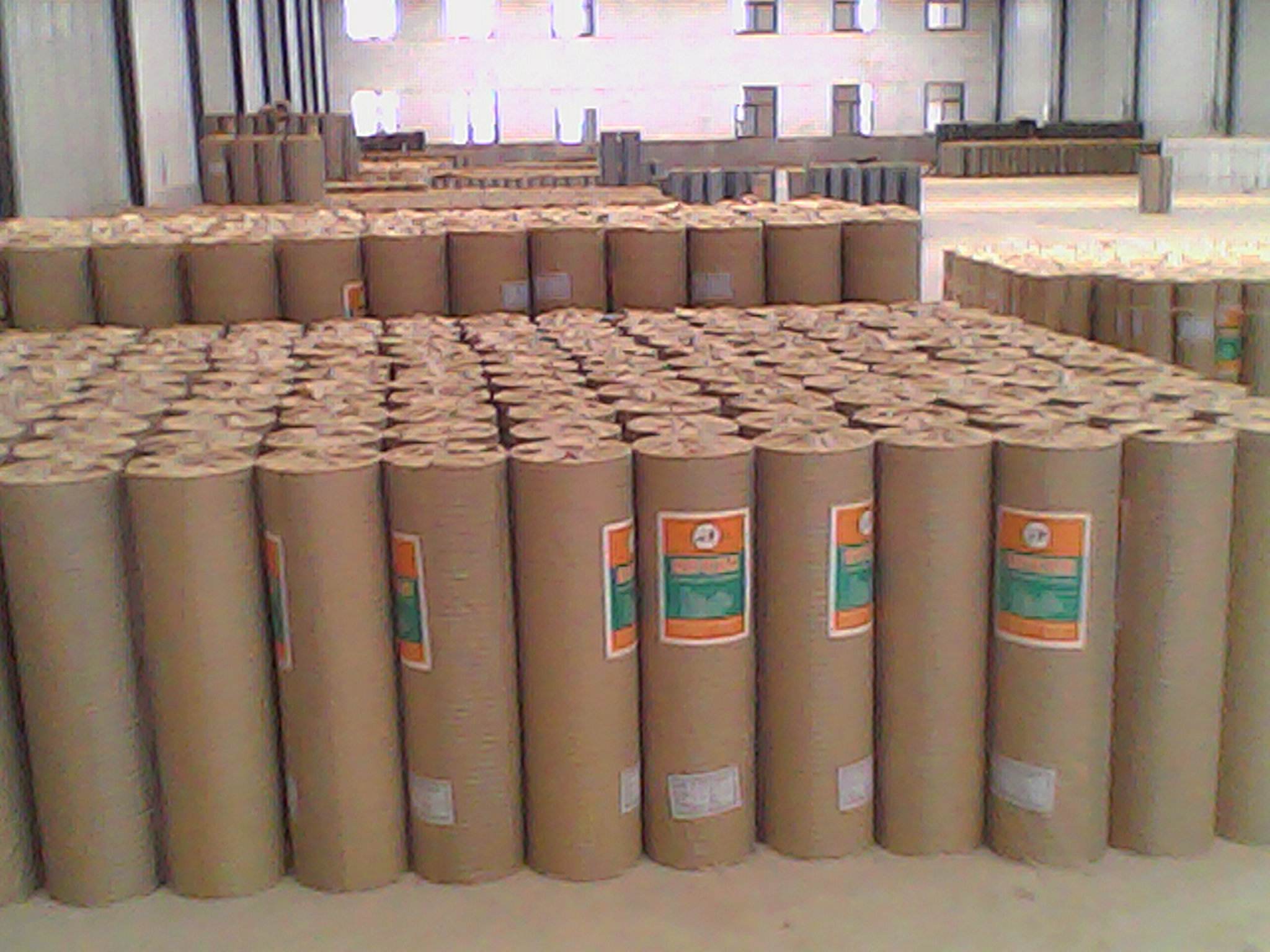

     timg (9) welded wire mesh
