SN-HL-2500B
SECURE-NET
8515809090
SECURE-NET
CHINA
ISO SGS
Any port in China
1
30sets
T/T,L/C
| Quantity: | |
|---|---|

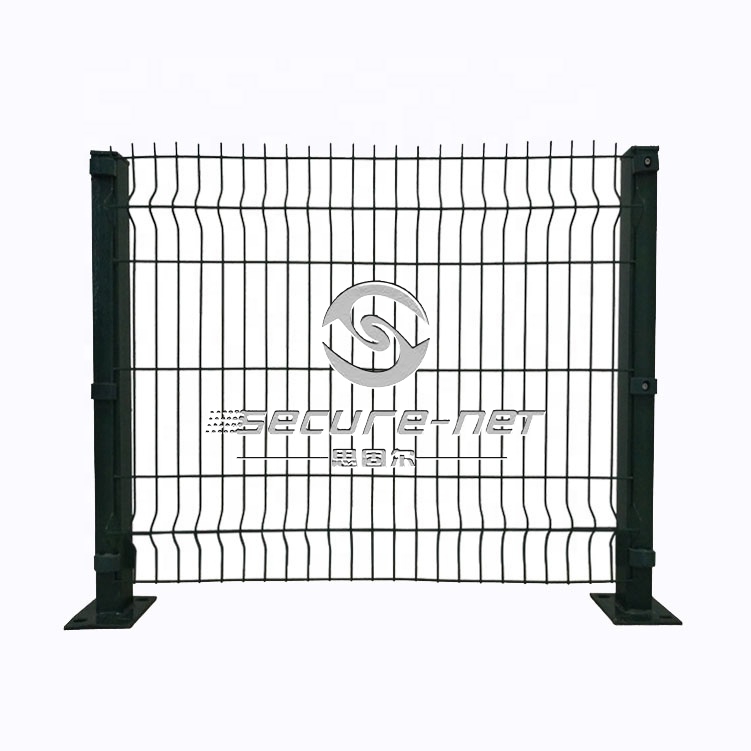

Fence Panel Welding Machine Line insist of :

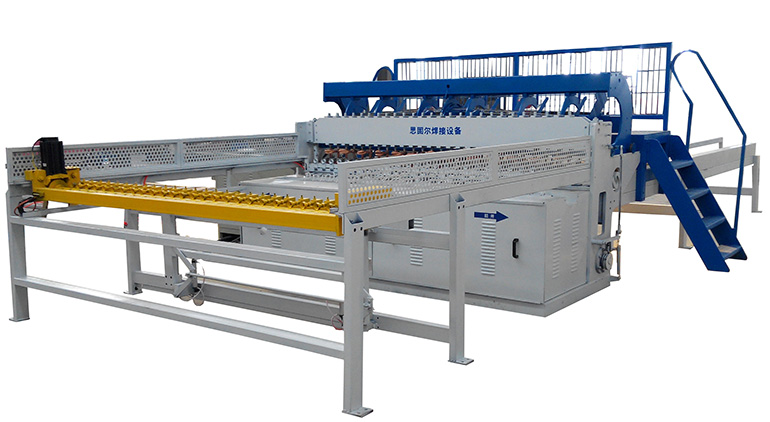

Welded panel mesh welding machine
Wire straightening&cutting machine
Fence panel bending machine
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.
Program |
HWJX1500 |
HWJX2000 |
HWJX2500 | |
|
Wire diameter |
2.5-6.0mm | 2.5-6.0mm | 2.5-6.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
|
Number of electrodes | 31 | 41 | 48 |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Electric capacity | 500KVA | 630KVA | 800KVA |
|
Work strokes | 40-60/min | 40-60/min | 40-60/min |
|
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |

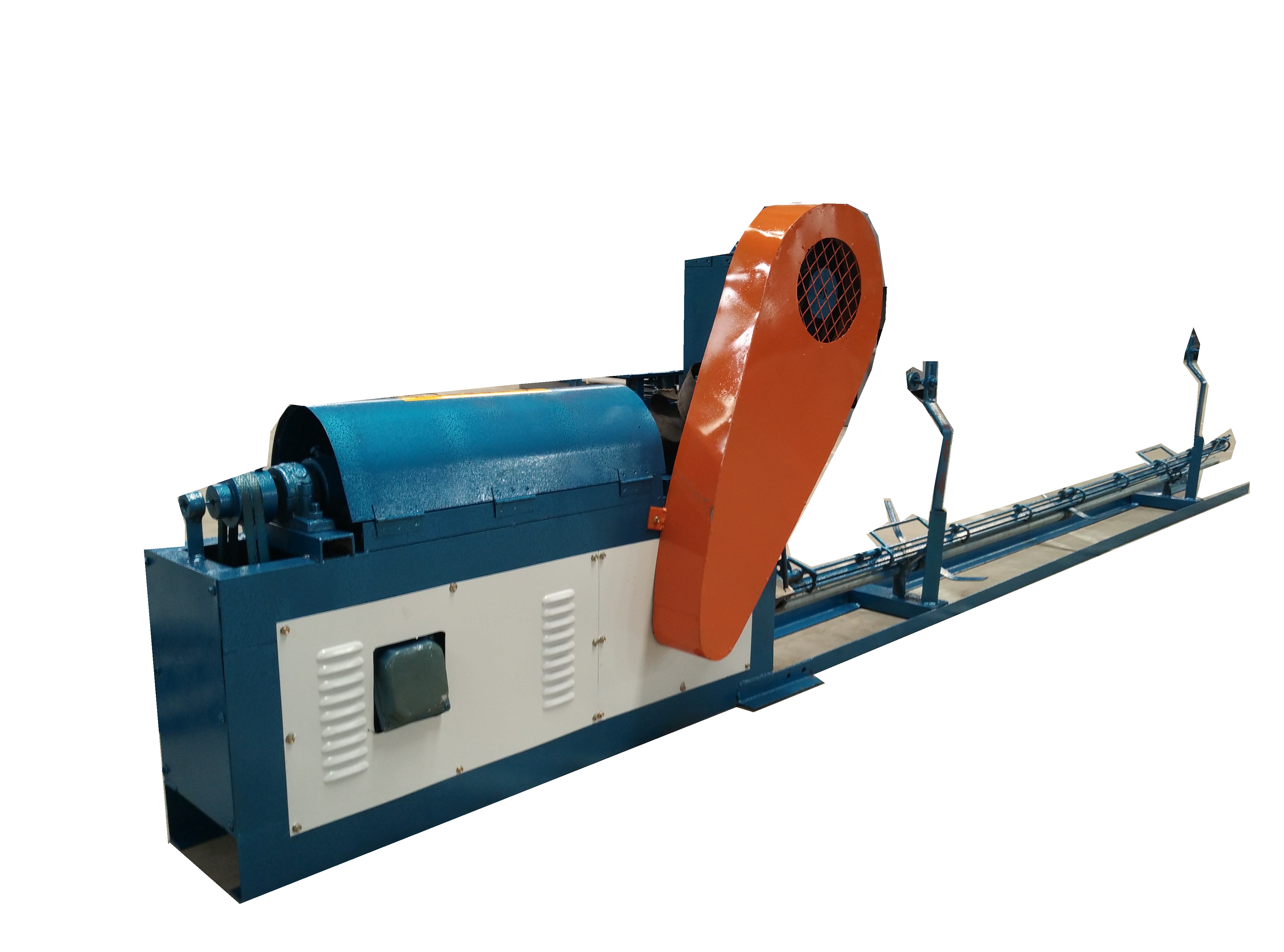

1.Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2.This kind of machine wire diameter is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4.This machine has many advantages, such as neat cutting mouth, less error and good functions.

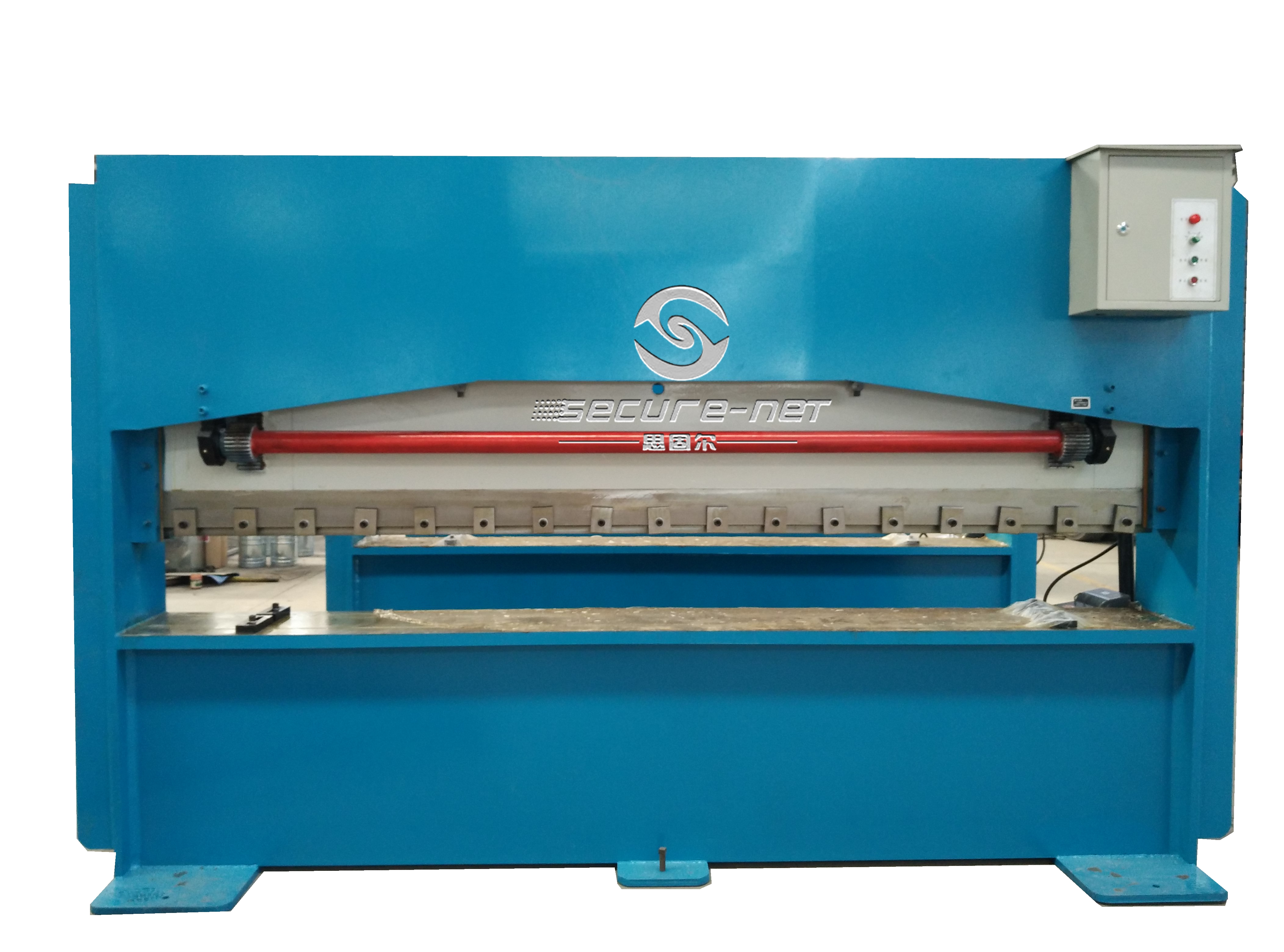

Wire Mesh Fence Curver Bending Machine use for bend the curver on fence pannel.
It also can be bend metal sheet.
MORE NAMES:
Iron fence machine, fencing panels machine, Fence metal mesh making machine, Concrete fence panels for sale, Fence panel machine,Fence reinforcement machine
Clear vu fence machine,Fence equipment sale,Wire fencing machine, Fence making machine, Mesh fence machine,Steel rod fencing machine,Fence machine price
Iron fence netting machine,Automatic welded wire mesh fence machine, Automatic fencing net machine,Weld mesh fencing machine,wire mesh fence weaving machine
