358 Anti-climb Fence Mesh Machine Line

  • SN-HL-358
  • SECURE-NET
  • 8515809090
  • SECURE-NET
  • CHINA
  • SGS
  • Any port in China
  • 1
  • 30sets
  • T/T,L/C
Quantity:

Full 358 Anti-climb Fence Mesh Machine Line insist of :

- Anti-climp fence welding machine

-Wire straighter&cutter

-Fence bender

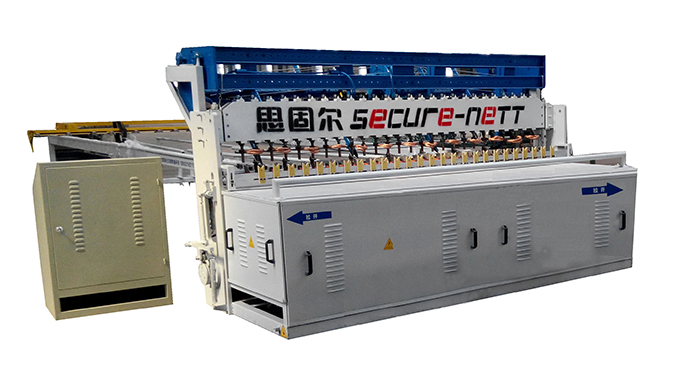

                                                                                            Anti-climp fence welding machine

                                                        prison wire mesh welding machine


Anti-climb fence welding machine also called security fence machine,it is used to mae fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.

1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the stepper motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts specical ones to make the welding spot uniform.

Program



SN-HL-358-1500



SN-HL-358-2000



SN-HL-358-2500




Wire diameter



3.0-6.0mm


3.0-6.0mm


3.0-6.0mm




Max mesh width


≤1500


≤2000


≤2500




Number of electrodes


31


41


48




Mesh Length


0.7-6.0m


0.7-6.0m


0.7-6.0m




Cross wire spacing


12.7-300mm


12.7-300mm


12.7-300mm




Line wire spacing


76.2-300mm


76.2-300mm


76.2-300mm




Electric capacity


As request


As request


As request




Work strokes


40-60/min


40-60/min


40-60/min




Control System

PLC programmable

controller

PLC programmable

controller

PLC

 programmable

controller



                                                                                    Wire straighter&cutter

                                                       wire straighter&cutter 1

This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire.

Wire diameter:2.5-5.0mm

Cutting length: as request.

                                                                                        Fence bender

                                                    fence bender

Wire Mesh Fence Curver Bending Machine use for bend the curver on fence pannel.

It also can be bend metal sheet.

Medel

Nominal

 Force

Width

Working

Stroke

Motor

Power

Length
Width
Height
Weight
SK60/2500MM
60 T
2500mm
120mm
7.5 kw
3340
1000
2100

   4

SK80/2500MM
80 T
2500mm
120mm
7.5 kw
3340
1000
2100
5
SK100/2500MM
100 T
2500mm
120mm
11 kw
3340
1000
2100
6.1
SK160/2500MM
160 T
2500mm
150mm
15 kw
3500
1100
2300
8.5
SK220/2500MM
200 T
2500mm
150mm
18.5 kw
3500
1200
2400
12


fb0363468811fa8c8aa0da855ef4333e_r

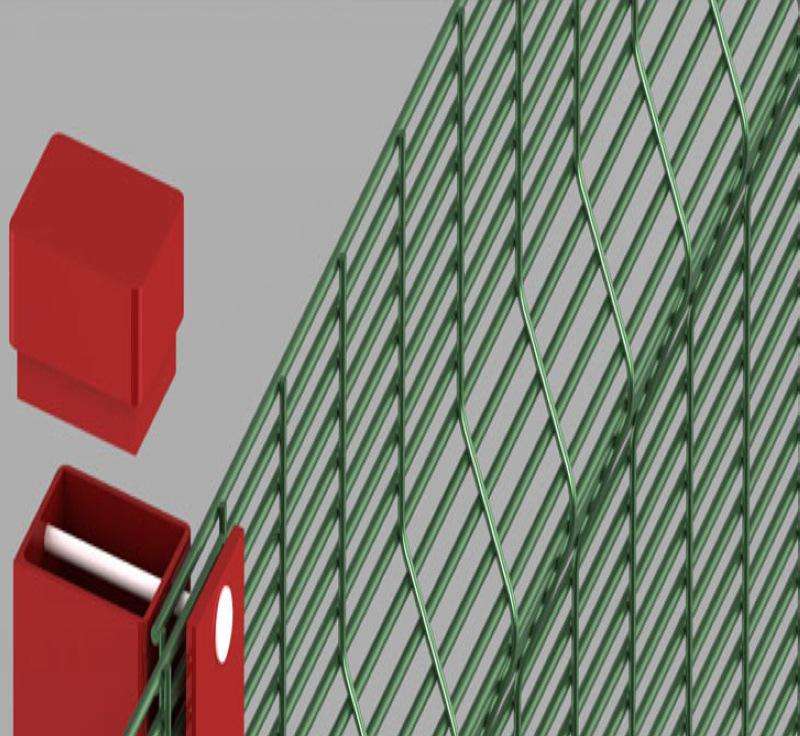

The fence is designed to make it very difficult to cut through the panel with simple hand tools. With wire thickness of 4mm and spacing of 75mm x 12.5mm, intruders can never cut off the fence.

Anti climb fence is widely used by reputable Real Estate Developers, Industrial Factories, Engineering Firms, Farms owners, Government Sectors

Products are widely used in electricity distribution sites, prison perimeter areas, airports, warehousing facilities & wildlife sanctuaries,etc.

timg (11)
