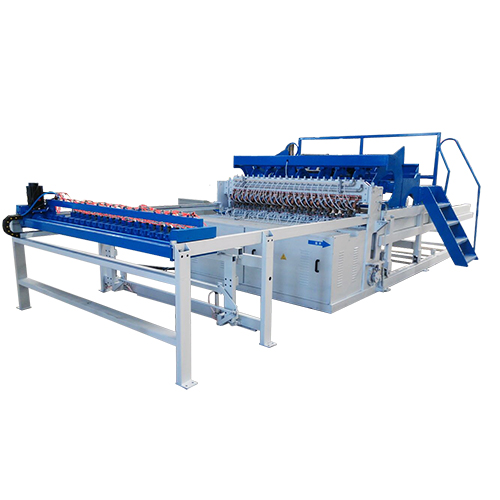

This machine has a automatic line wire feeding conveyor, its very easy to feed line wire, more automatic.
Wire Diameter3.0-8.0mm
Mesh Size 100*100-300*300
Pre-cut cross/line wire
PLC Program System
Automatic Line Wire Feeding
Output:Sheet
Servo Motor Driving Force

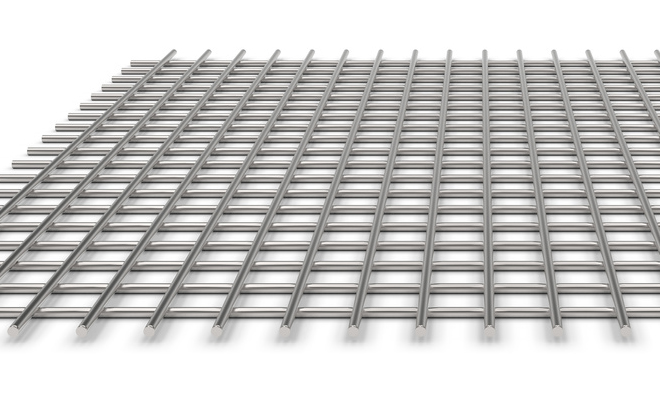

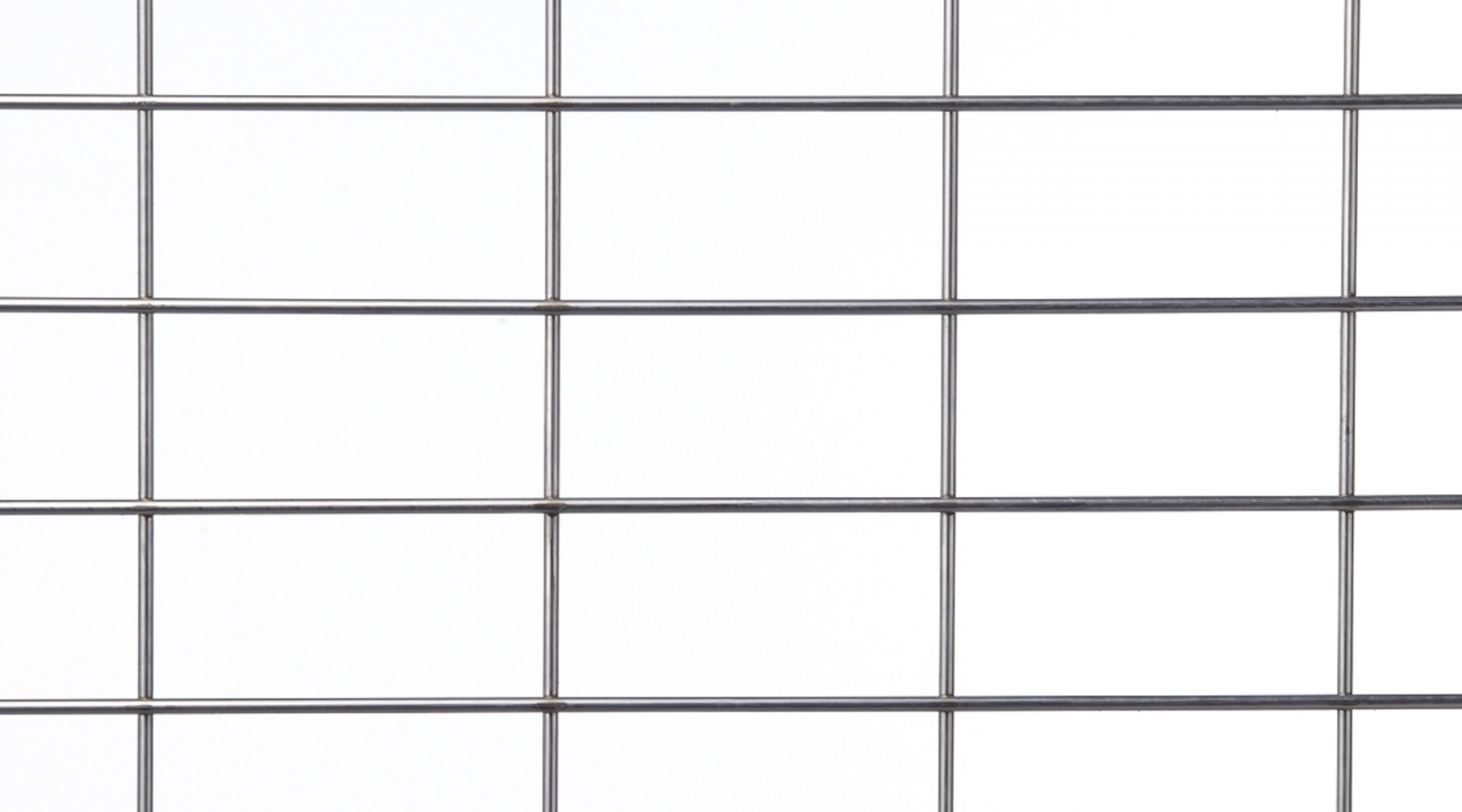

Application:Welded Mesh/Welded Mesh Fence
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.
This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.The machine can press the panel tightly once , and weld by several times .
On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This fully automatic wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
1.Cross wire feeding way: drop from cross wire hopper automatically,position of drop wire is accurately.
2.Mesh panel pulling way:adopt the serve motor, pull the panel back and forth ,pneumatic lock the cross wire,ensure position is accurate.
3.Stacking mesh panel way: fully automatic wire mesh panel transmission mechanism,stack wire mesh panel automatic, Neatly stacked, facilitate transportation, save manpower and material resources.
Program |
HWJX1500 |
HWJX2000 |
HWJX2500 | |
|
Wire diameter |
3.0-8.0mm | 3.0-8.0mm | 3.0-8.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
|
Number of electrodes | 31 | 41 | 48 |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 100-300mm | 100-300mm | 100-300mm |
|
Line wire spacing | 100-300mm | 100-300mm | 100-300mm |
|
Electric capacity | 500KVA | 630KVA | 800KVA |
|
Work strokes | 40-75/min | 40-75/min | 40-75/min |
|
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |
Application
