SN-JX
SECURE-NET
8515809090
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
Availability: | |
---|---|
Quantity: | |

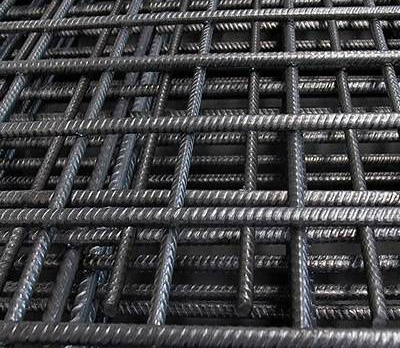

Panel Mesh Welded Machine
Mechnical building mesh welding machine adopts electrical synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.Welding machine operation is accurate,it is stable,firm welded spot is firm and without welded tracks.
Cross wires is pre-straight and pre-cut wire.
Line wire is feeding from coils.
Elastic tension link pushing system,the mesh hole and mesh aperture can adjust randomly.
This operation is accurate,welding speed is fast,also it is easy to lean and operate.

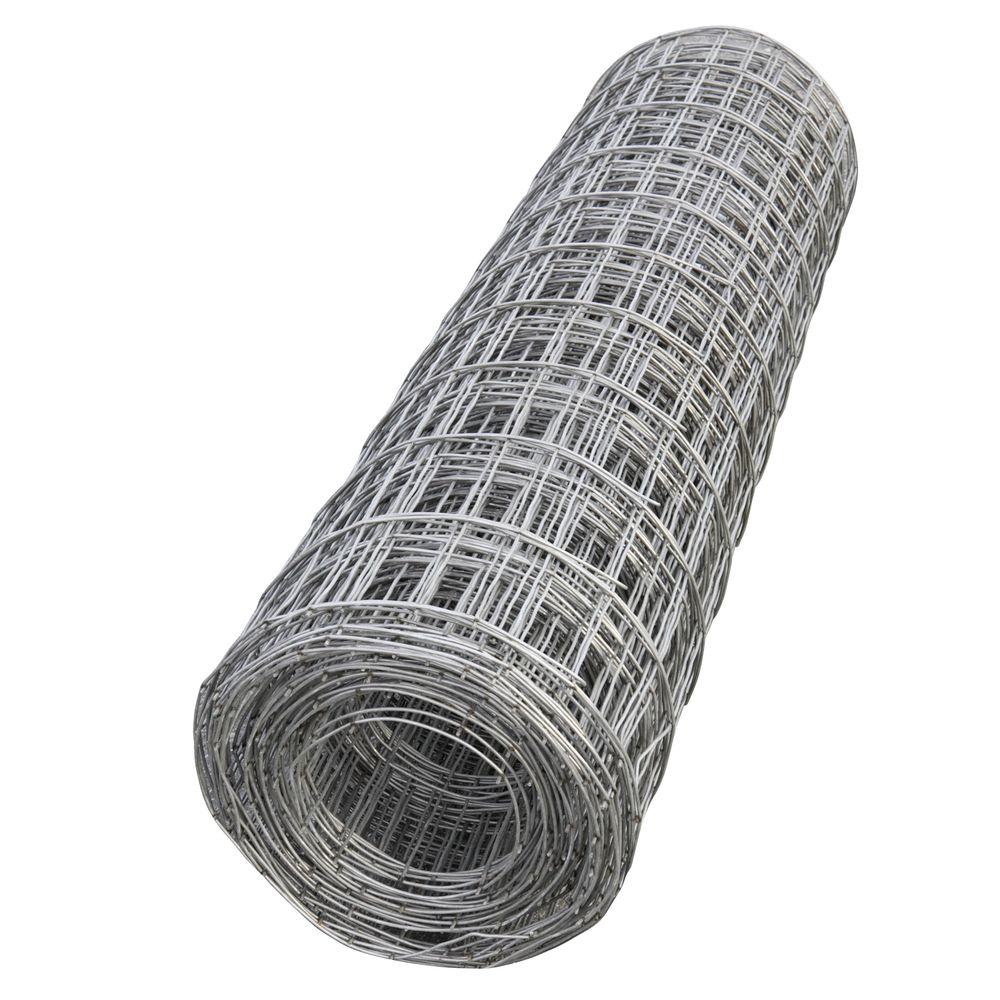

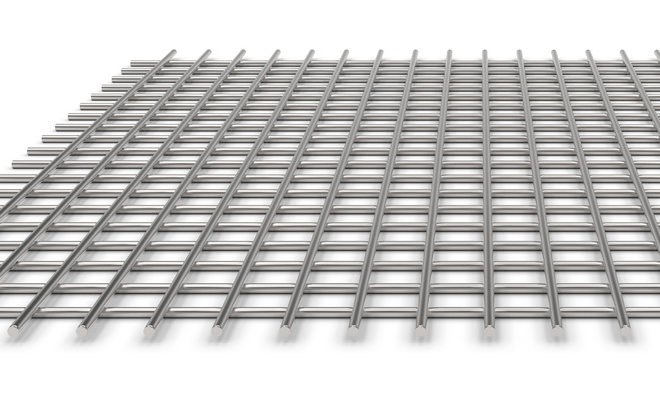

The finished product can be in coil or in panel.
Program |
SN-JX-1500 |
SN-JX-2000 |
SN-JX-2500 | |
|
Wire diameter |
2.5-5.0mm | 2.5-5.0mm | 2.5-5.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
Number of electrodes | 31 | 41 | 48 | |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 50-300mm | 50-300mm | 50-300mm |
Electric capacity | 5x100KVA | 6x100KVA | 8x100KVA | |
Work strokes | 40-60/min | 40-60/min | 40-60/min | |
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |
Application:
