SN-GTZ-256
SECURE-NET
8463300000
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
| Wire diameter: | |
|---|---|
| Cutting length: | |
| Speed: | |
| Quantity: | |

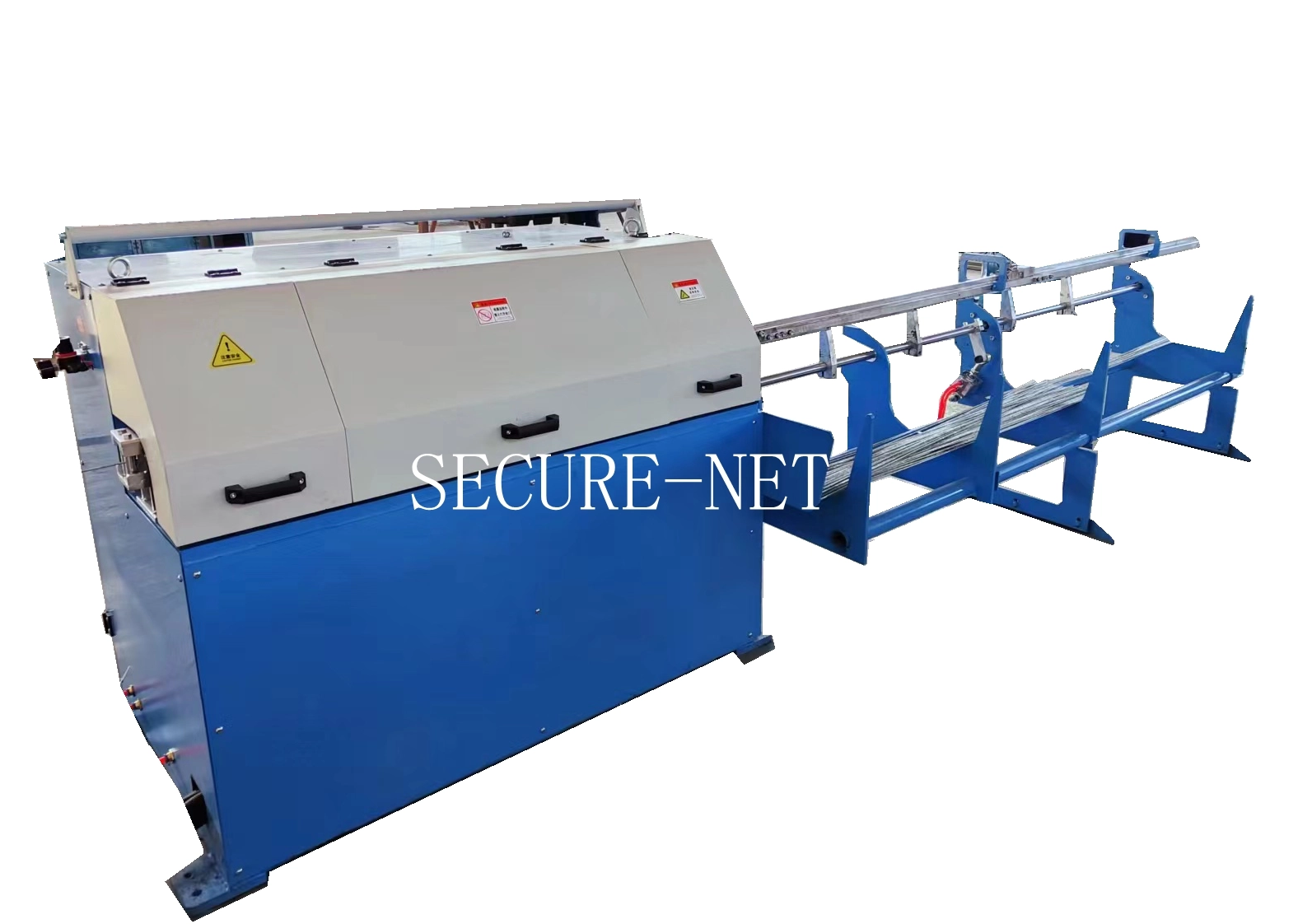

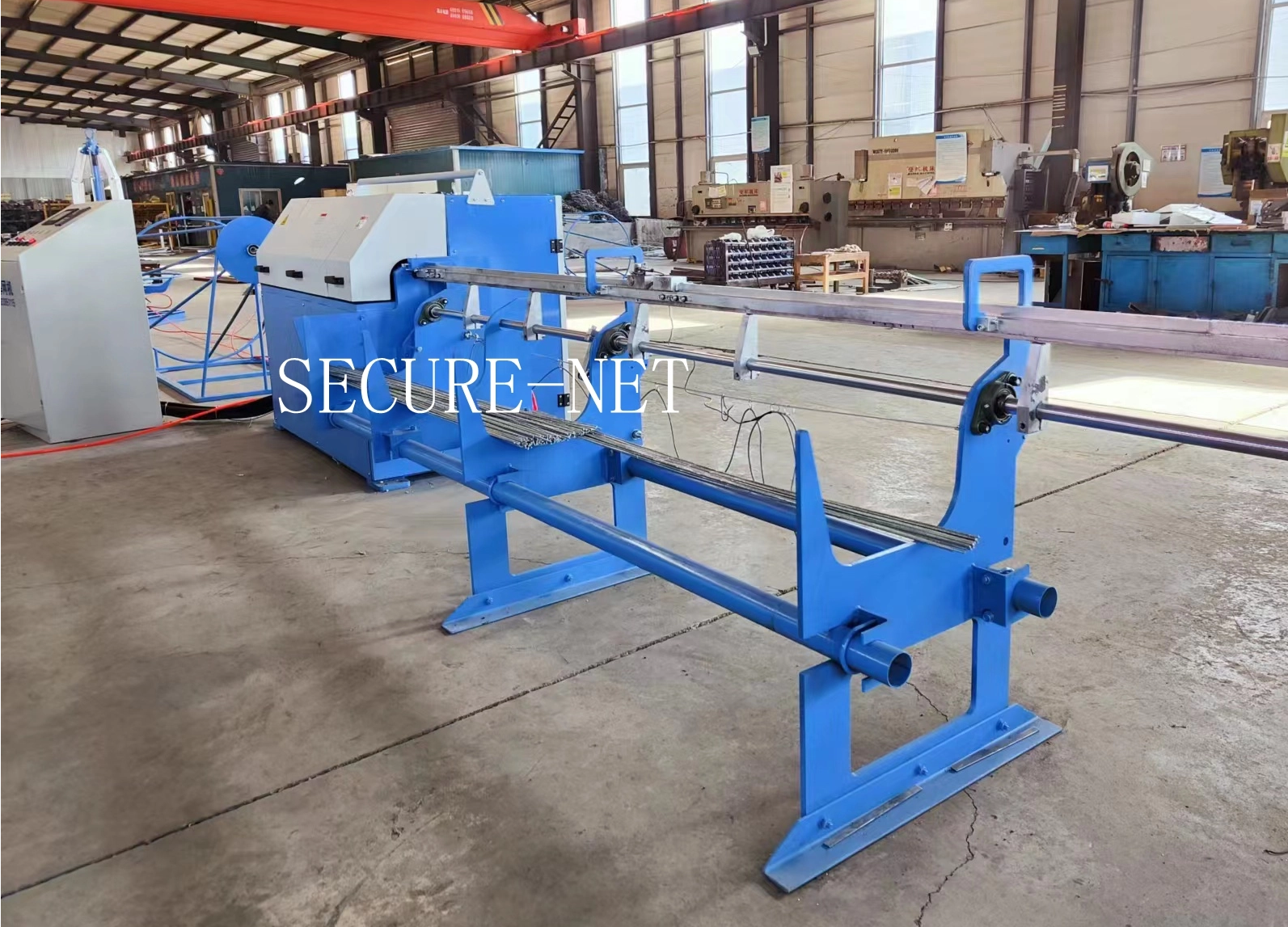

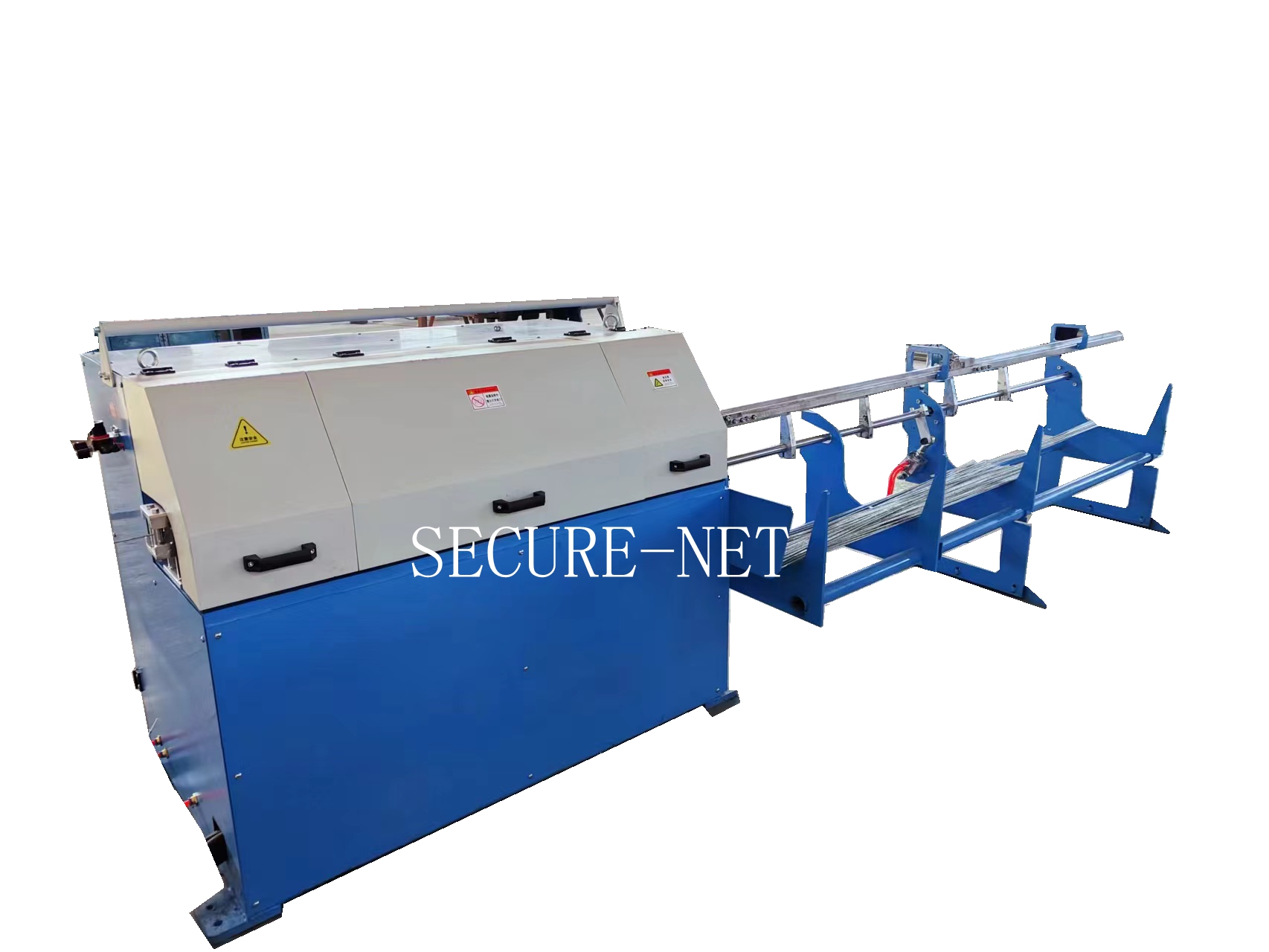

High speed wire straightening and cutting machine
This automatic wire straightening and cutting machine is frequency control,and double servo motor control,one serve motor control cutting,another servo motor used for conveying. It has high straightening production efficiency, precise length control, good straightness, and stable and reliable performance. .
This machine mainly consists of wire pay-off rack, main straightening,tractor cutting device, mechanical protection modeling, wire collection rack and control cabinet.
Model | SN-GTZ-256 |
Wire Diameter | 3-6 mm |
Cutting Length | ≤3000mm or as request |
Cutting error | ±1mm |
Cutting Speed | 80-110m/min |
Straightening accuracy | ≤1mm |
Motor power | 7.5kw+3.8kw+2.6kw(servo) |
Weight | 2000 KG |
Mechanical dimension | 4800x1200x1200mm |
Finished product:
High speed wire straightening and cutting machine
This automatic wire straightening and cutting machine is frequency control,and double servo motor control,one serve motor control cutting,another servo motor used for conveying. It has high straightening production efficiency, precise length control, good straightness, and stable and reliable performance. .
This machine mainly consists of wire pay-off rack, main straightening,tractor cutting device, mechanical protection modeling, wire collection rack and control cabinet.
Model | SN-GTZ-256 |
Wire Diameter | 3-6 mm |
Cutting Length | ≤3000mm or as request |
Cutting error | ±1mm |
Cutting Speed | 80-110m/min |
Straightening accuracy | ≤1mm |
Motor power | 7.5kw+3.8kw+2.6kw(servo) |
Weight | 2000 KG |
Mechanical dimension | 4800x1200x1200mm |
Finished product:
