SN-SL-4000
SECURE-NET
8463300000
SECURE-NET
CHINA
SGS
Any port in China
1
30sets
T/T,L/C
| Quantity: | |
|---|---|

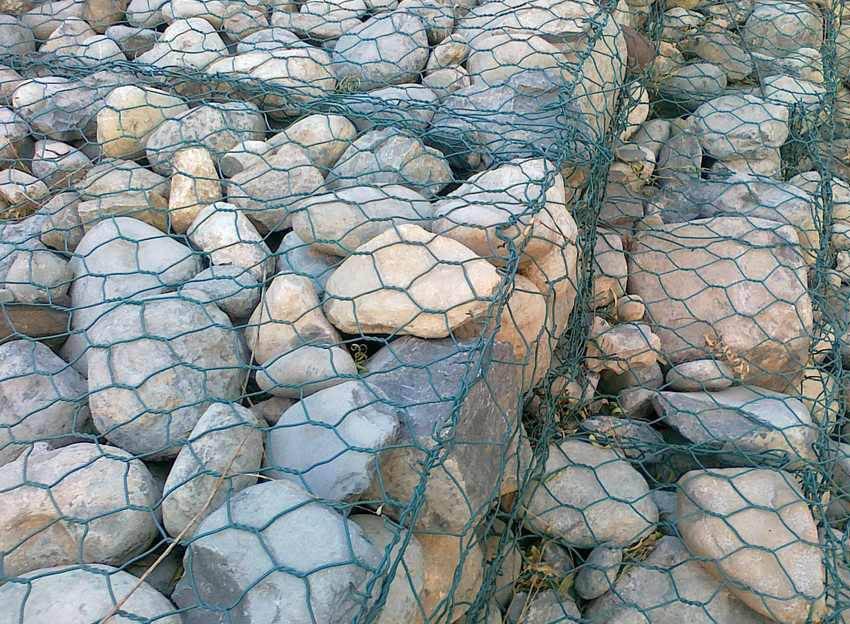

Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style

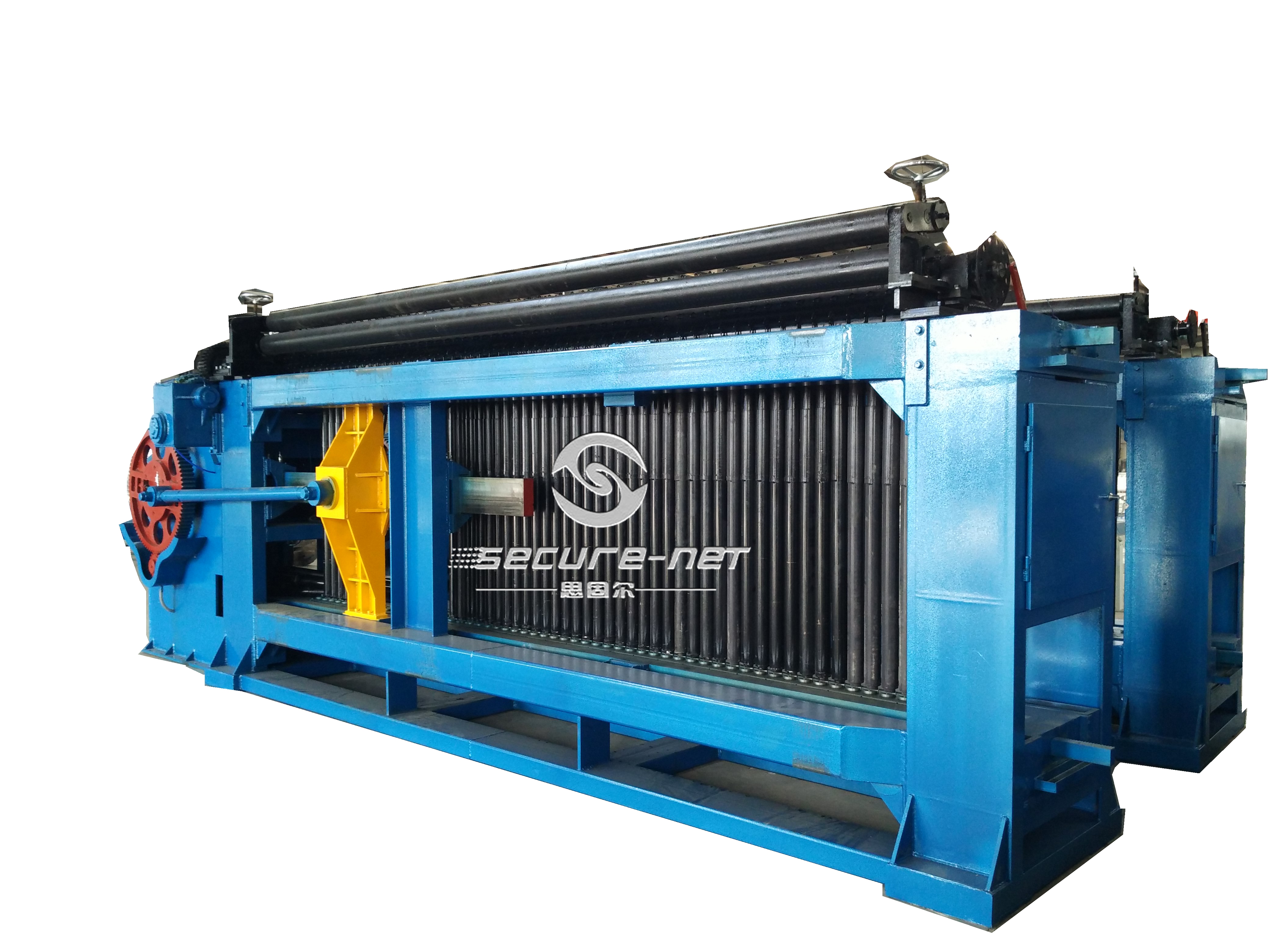

4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.2mm Wire, 22kw
Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System
1,It is electric cabinet button control.
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
We also accept any special order form clients. Twists selection: double twists(3 cross); three twists(5 cross); Double twists share with three twists(3 cross share with 5 cross together)
Specifications:
| Style | Mesh size | Width | Wire diameter | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| SK23-60-2 | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
| SK23-80-2 | 80X100 | 1.6-4.0 | 3 | 195 | |||
| SK23-100-2 | 100X120 | 1.6-4.0 | 3 | 225 | |||
| SK23-120-2 | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| SK33-60-2 | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
| SK33-80-2 | 80X100 | 1.6-4.0 | 3 | 195 | |||
| SK33-100-2 | 100X120 | 1.6-4.0 | 3 | 225 | |||
| SK33-120-2 | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| SK43-60-2 | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| SK43-80-2 | 80X100 | 1.6-4.0 | 3 | 195 | |||
| SK43-100-2 | 100X120 | 1.6-4.0 | 3 | 225 | |||
| SK43-120-2 | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| SK43-60-3 | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
| SK43-80-3 | 80X100 | 1.6-4.0 | 5 | 195 | |||
| SK43-100-3 | 100X120 | 1.6-4.0 | 5 | 225 | |||
| SK43-120-3 | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Standard production line
| 1 | Gabion mesh machine | 1 set |
| 2 | Netting winging machine | 1 set |
| 3 | Wire tension device | 1 set |
| 4 | Spring coiling machine | 1 set |
Can choose other supporting machinery
| 1 | Wrapped edge machine | 1 set |
| 2 | Mesh cutting machine | 1 set |
| 3 | Gabion packing machine | 1 set |
| 4 | Wire pay of system | 1 set |
| 5 | Straightening cutting machine | 1 set |
| 6 | PVC coating line | 1 set |
| 7 | Mesh straightening machine | 1 set |
