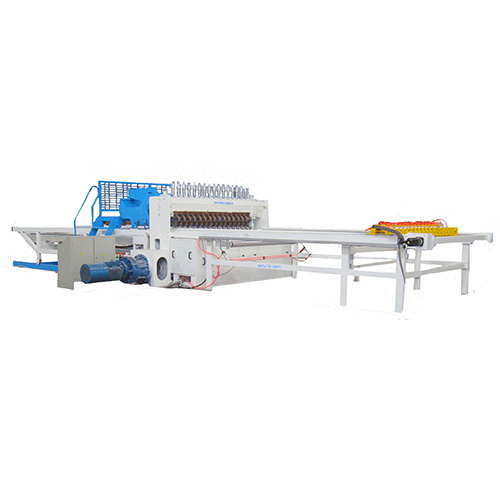

5.0-12.0mm Reinforcing Mesh Welding Machine

  • Secure-Nett
  • Hebei Anping
  • ISO9001
  • Xingang, Tianjin
  • 1Set
  • 30 Set/Sets per Month
  • L/C,T/T
Quantity:

1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.





Program



    HWJX1500



    HWJX2000



        HWJX2500




Wire diameter



    5.0-12.0mm


    5.0-12.0mm



         5.0-12.0mm




Max mesh width



    ≤1500


     ≤2000


         ≤2500




Number of electrodes


         14


         18



           24




Mesh Length


     0.7-12.0m


    0.7-12.0m


          0.7-12.0m




Cross wire spacing



    50-300mm


    50-300mm


        50-300mm




Line wire spacing


     50-300mm


      50-300mm


        50-300mm




Electric capacity



      500KVA


      630KVA


           800KVA




Work strokes


     40-60/min


      40-60/min


          40-60/min




Control System

PLC programmable

controller

PLC programmable

controller

PLC programmable

controller

fb0363468811fa8c8aa0da855ef4333e_r


Application:

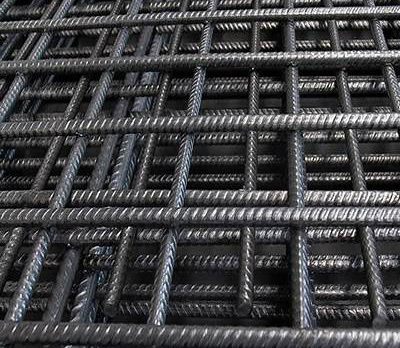

concrete-reinforcing-square-mesh-

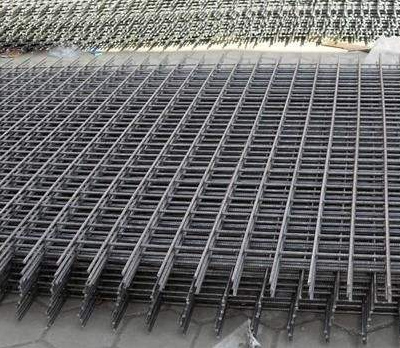

Steel-fabric
