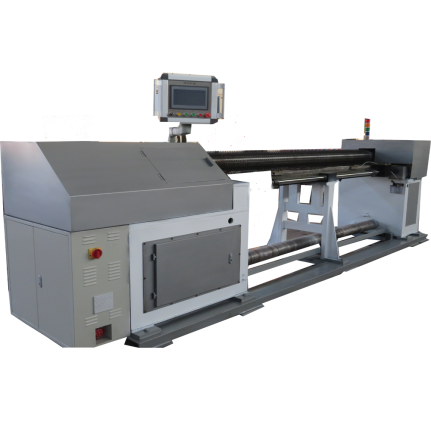

Hexagonal wire mesh netting machine also called chicken cage wire mesh machine,is automatically feeding wire weaving mesh,taking up rolls and higher speed than similar machinery.Hexagonal wire mesh is mainly used for chicken feeding,graze protection,industrial filtering,decoration usage,etc.
Straight and reverse hexagonal wire metting machine
| Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor(kw) |
| 60-160 | 2600-3300 | 20-22mm | 0.52-0.7mm | 6 | 3.5-4.5 | 2.2 |
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.20mm | |||||
| 40-45mm | 0.60-1.40mm | |||||
| 50-55mm | 0.60-1.50mm | |||||
| 75-80mm | 1.00-1.50mm |
Normal twisted hexagonal wire mesh machine
Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor |
| 60-180 | 1200-3200 | 12mm | 0.38-0.5mm | 3 | 2-2.5 | 2.2kw |
| 15mm | 0.40-0.70mm | |||||
| 18mm | 0.38-0.70mm | |||||
| 20-22mm | 0.38-0.8mm | |||||
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.00mm | |||||
| 40-44mm | 0.40-1.30mm | |||||
| 50mm | 0.50-1.50mm | |||||
| 75mm | 0.50-1.65mm | |||||
| 100mm | 0.5-1.80mm |
Hexagonal wire mesh netting machine also called chicken cage wire mesh machine,is automatically feeding wire weaving mesh,taking up rolls and higher speed than similar machinery.Hexagonal wire mesh is mainly used for chicken feeding,graze protection,industrial filtering,decoration usage,etc.
Straight and reverse hexagonal wire metting machine
| Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor(kw) |
| 60-160 | 2600-3300 | 20-22mm | 0.52-0.7mm | 6 | 3.5-4.5 | 2.2 |
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.20mm | |||||
| 40-45mm | 0.60-1.40mm | |||||
| 50-55mm | 0.60-1.50mm | |||||
| 75-80mm | 1.00-1.50mm |
Normal twisted hexagonal wire mesh machine
Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor |
| 60-180 | 1200-3200 | 12mm | 0.38-0.5mm | 3 | 2-2.5 | 2.2kw |
| 15mm | 0.40-0.70mm | |||||
| 18mm | 0.38-0.70mm | |||||
| 20-22mm | 0.38-0.8mm | |||||
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.00mm | |||||
| 40-44mm | 0.40-1.30mm | |||||
| 50mm | 0.50-1.50mm | |||||
| 75mm | 0.50-1.65mm | |||||
| 100mm | 0.5-1.80mm |
