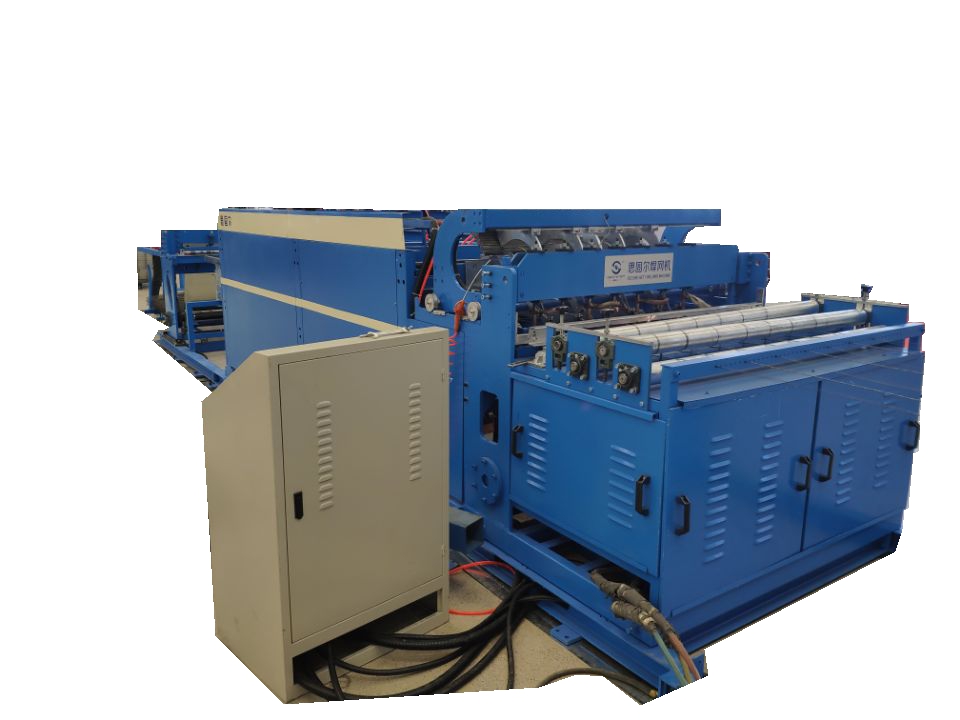

Spot Welding Machine

Spot welding machine is used for fence panels,the mesh panels can be welded continuous through two automatic trolleys.
One worker can handle one set machine.
  • SN-JZ-1200
  • SECURE-NET
  • 8515809090
  • SECURE-NET
  • CHINA
  • SGS
  • Any port in China
  • 1
  • 30sets
  • T/T,L/C
Quantity:

Full sets Spot Welding Machine Line insist of :

-Wire mesh welding machine

-Wire straightening&cutting machine

-Panel cutting machine

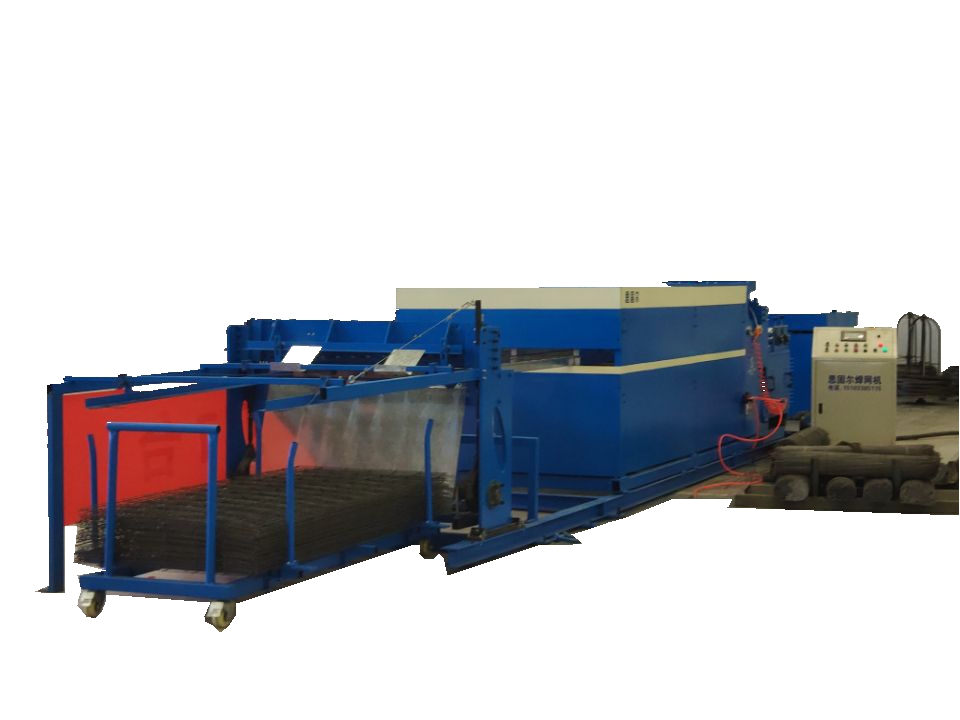

                                                                                              Wire mesh welding machine


0003



MODEL: SN-JZ-1200

This automatic machine designed as:

Wire diameter: 2mm-4mm

Cell size:160x160mm  other size can be designed.

Max welding width:1200mm

Speed: 0-120times/min

Capacity:3500pcs/8hours



The machine include:

Wire pay-off stands: 7 pcs

Line wire  straight device: 1 set

Wire mesh welding machine :1 set

Mesh cutting machine::1 set

Mesh panel delivery car: 2sets



Application

The ground heating mesh produced by welded wire mesh machine plays a key role in the geothermal engineering. Ground heating mesh can enhance the bearing capacity of roof and avoid the occurrence of adverse phenomena such as ground cracking, cracking and collapse. The heat conduction performance of the wire mesh is very good, which can promote the uniform heat dissipation.

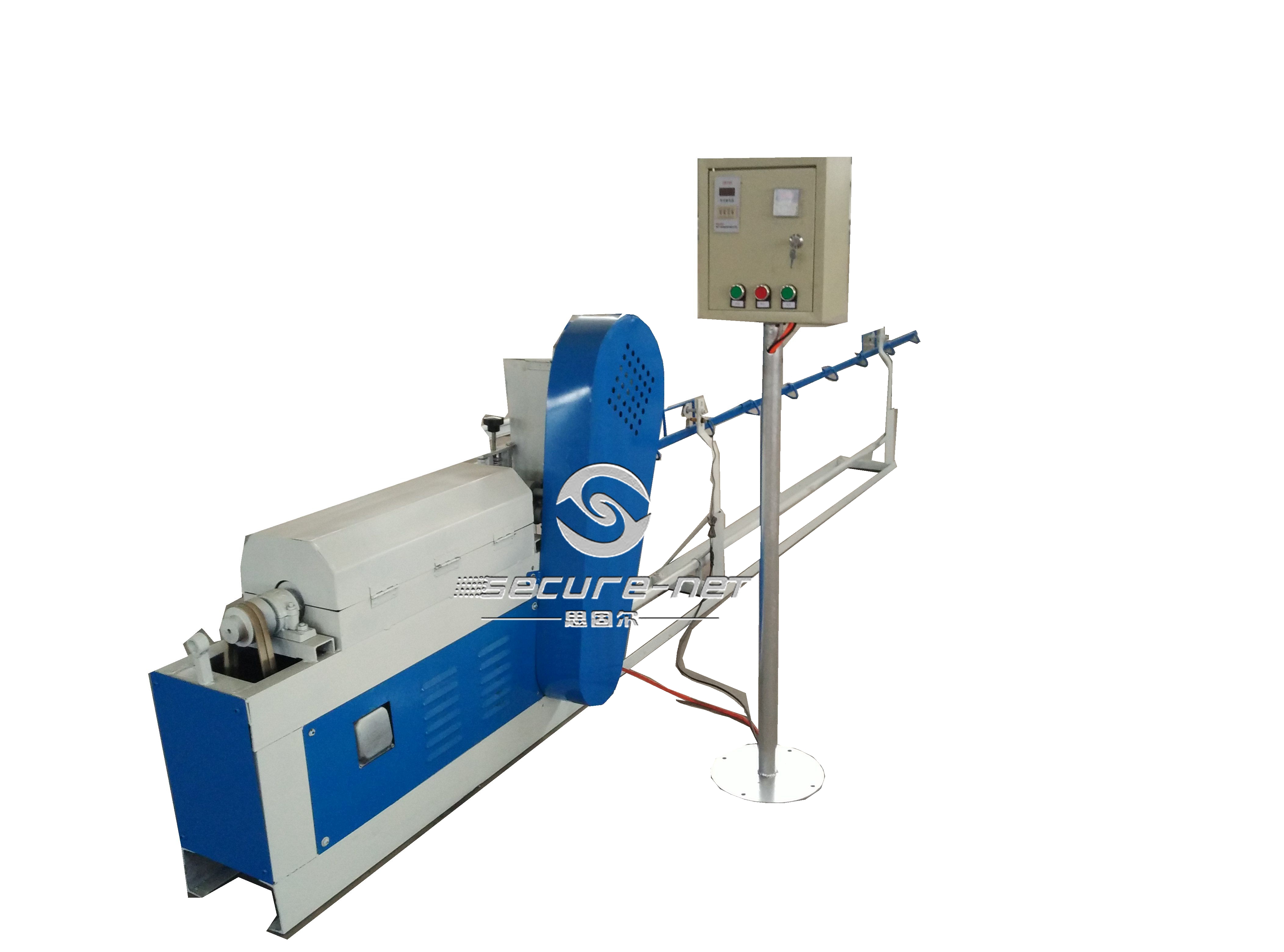

                    Wire straightening&cutting machine

                                                                             wire straighter&cutter 1

This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire.

Wire diameter:2.5-5.0mm

Cutting length: as request.

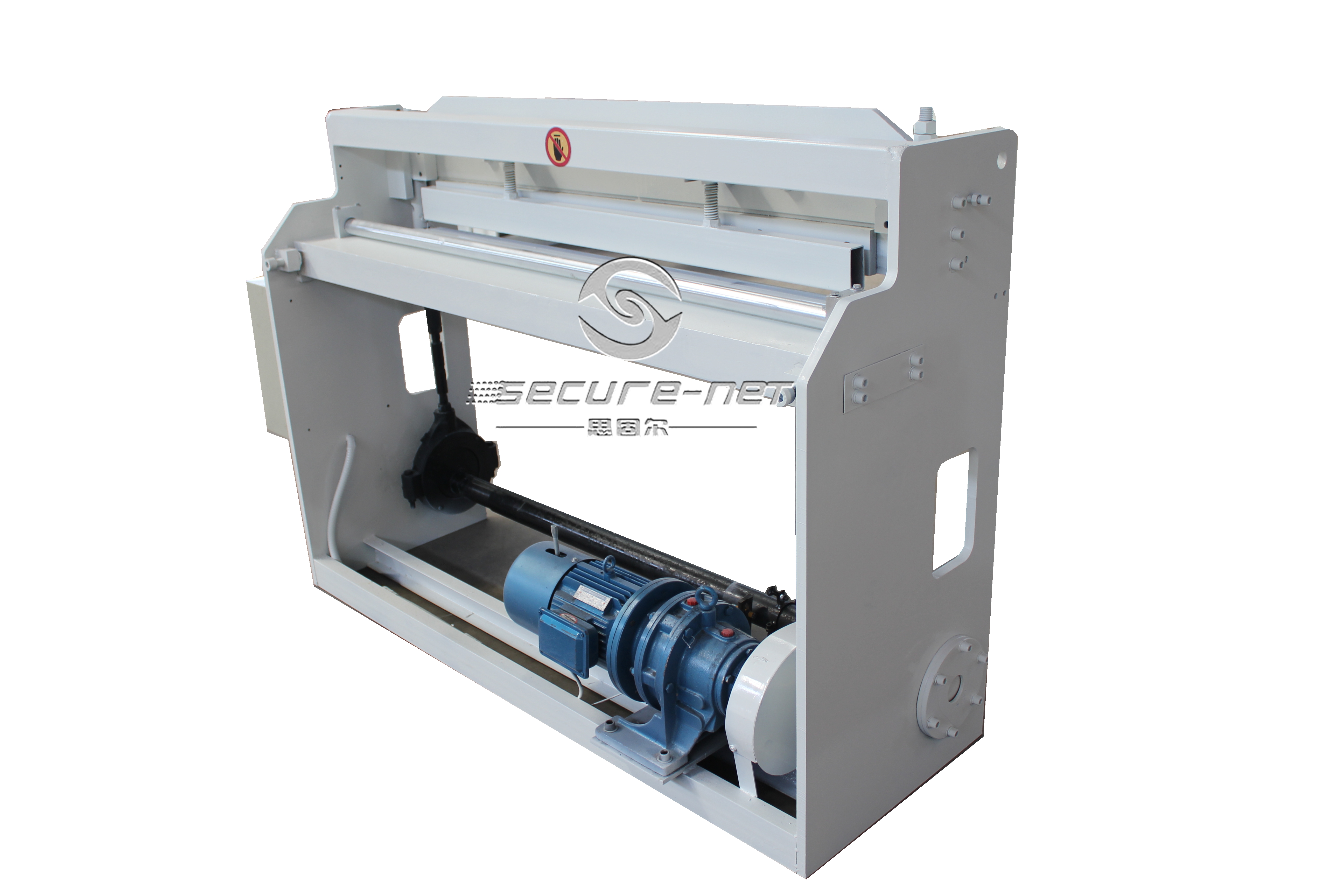

                                                                                     Panel cutting machine

                                                     cutting machine

fb0363468811fa8c8aa0da855ef4333e_r

0006
