SN-HL-2500D
SECURE-NET
8515809090
SECURE-NET
CHINA
ISO9001
XINGANG PORT
1SET
10SETS/MONTH
TT,LC
Availability: | |
---|---|
Quantity: | |

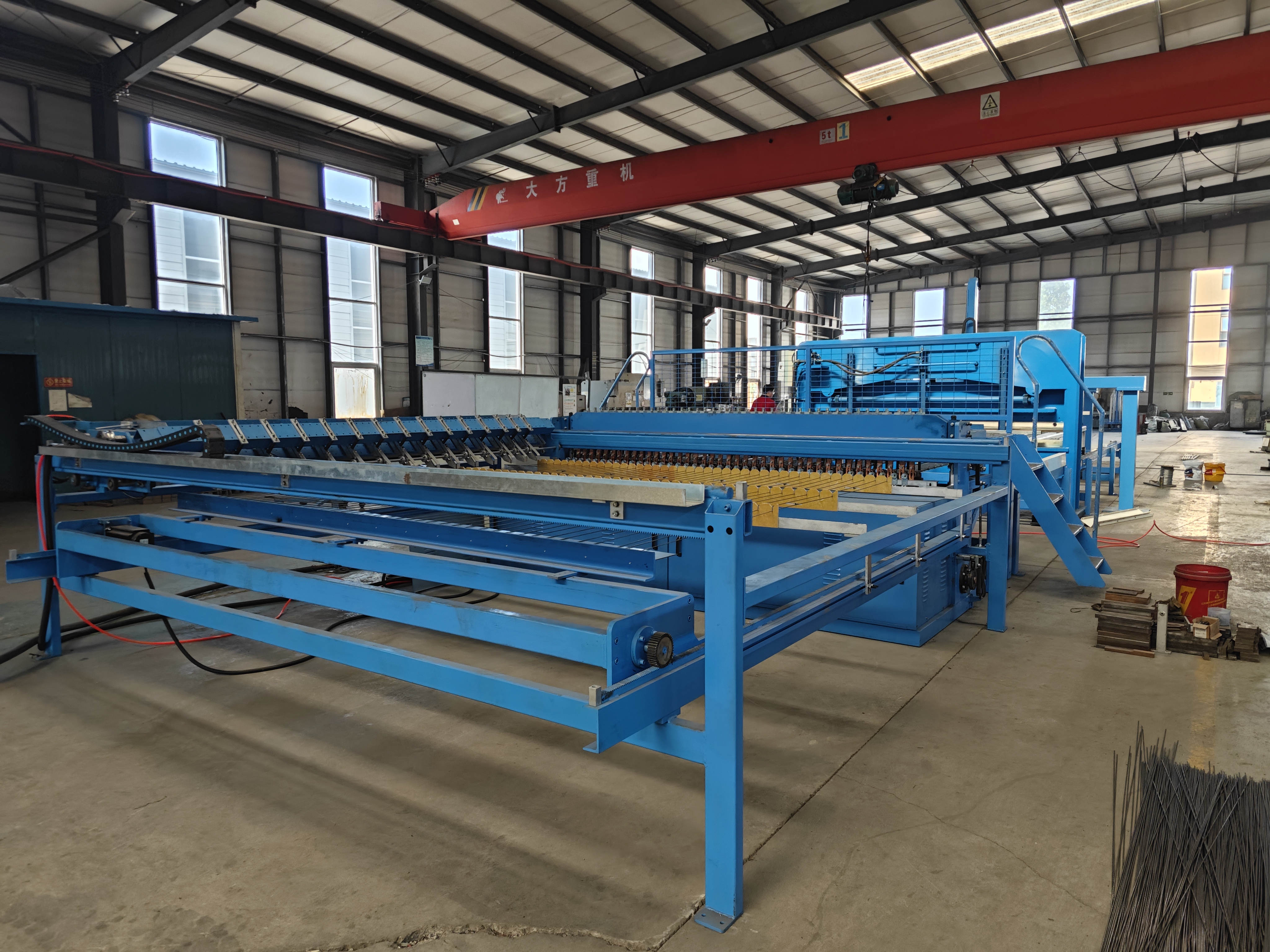

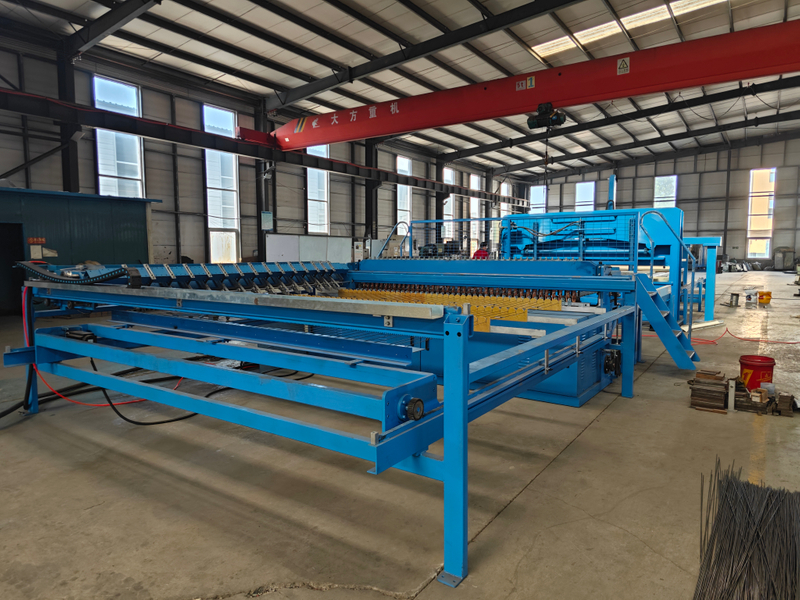

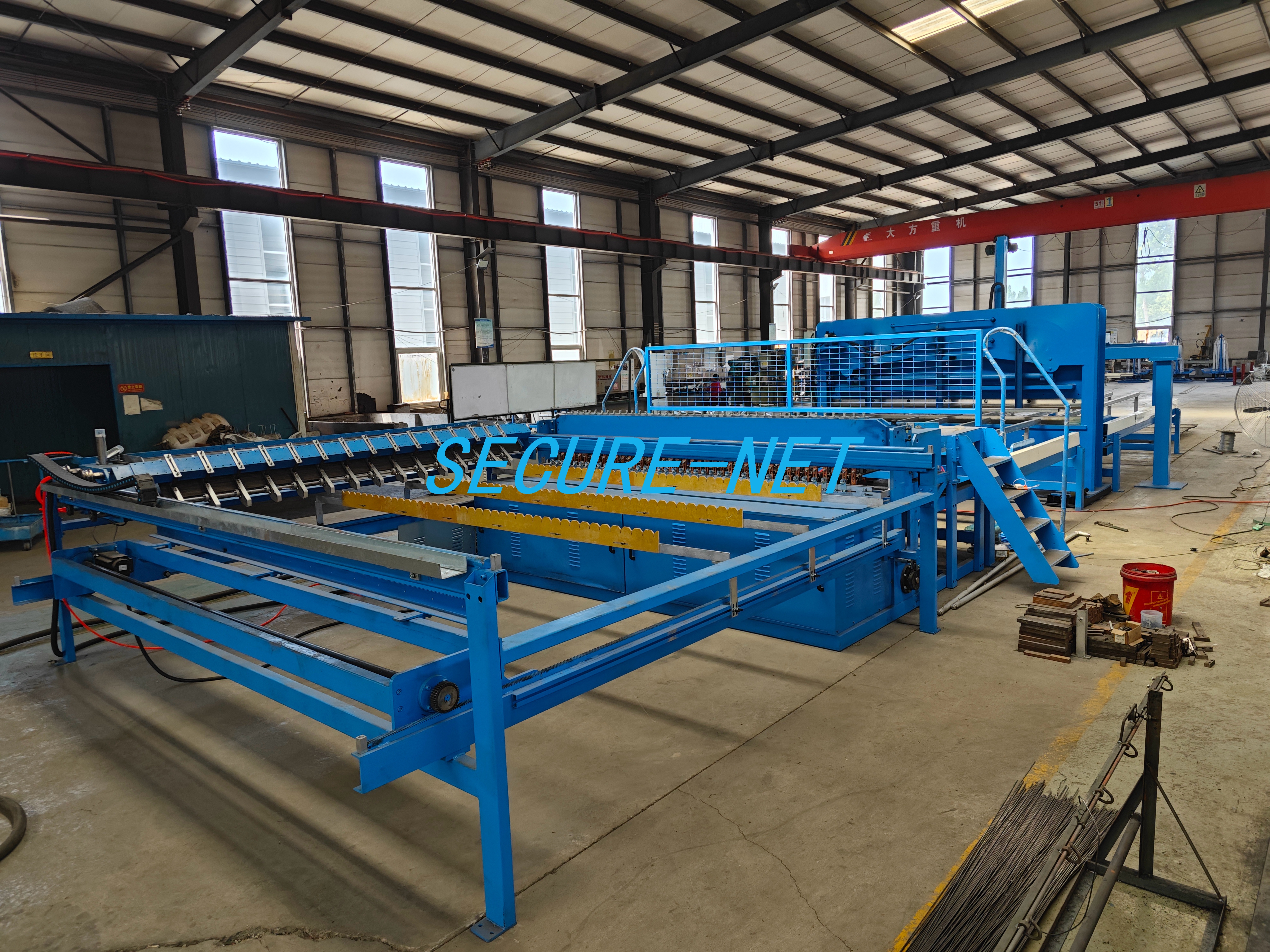

Fence Panel Welding Machine Line insist of :
Welded panel mesh welding machine
Wire straightening&cutting machine
Fence panel bending machine

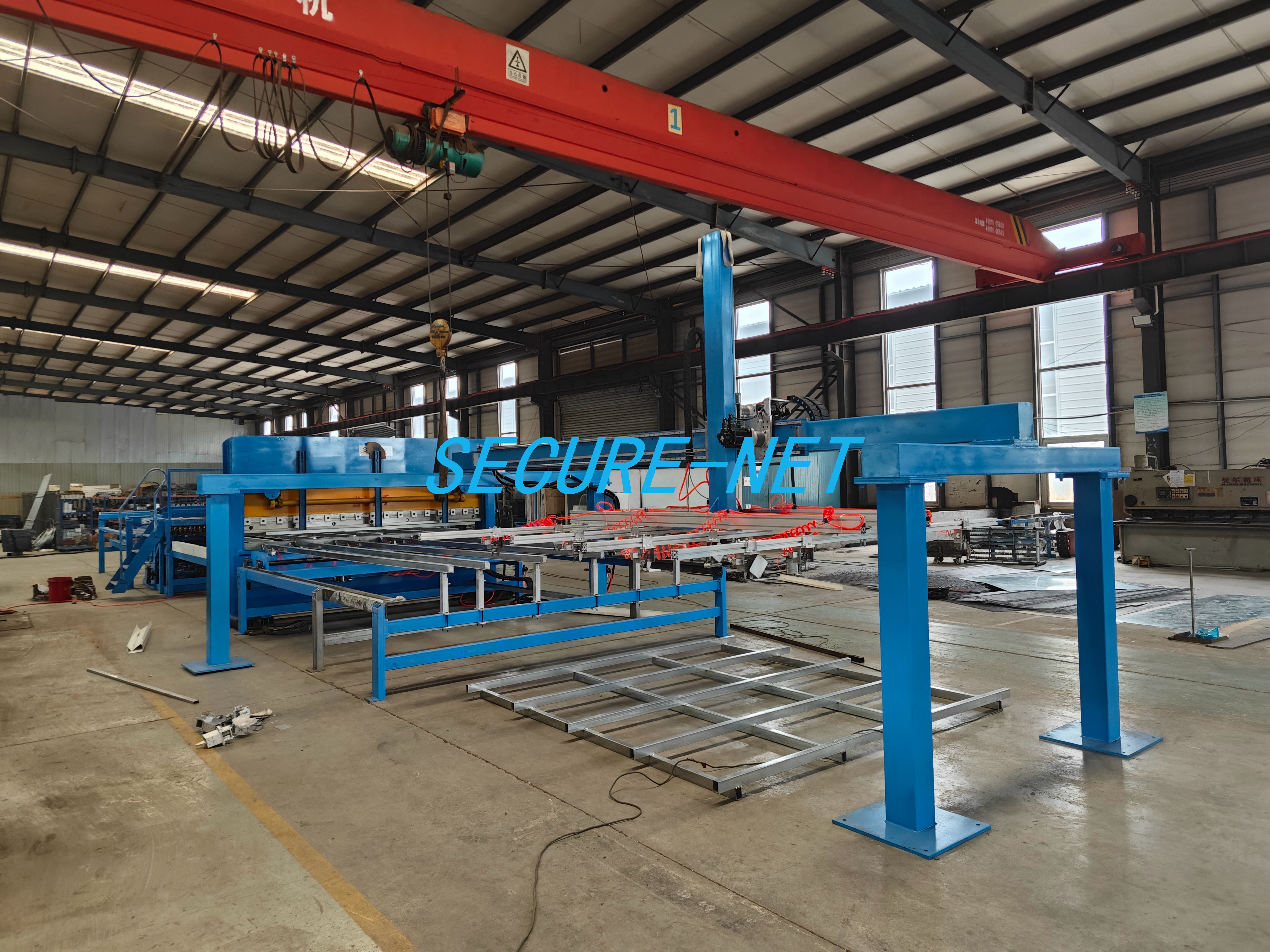

Fence stacking machine

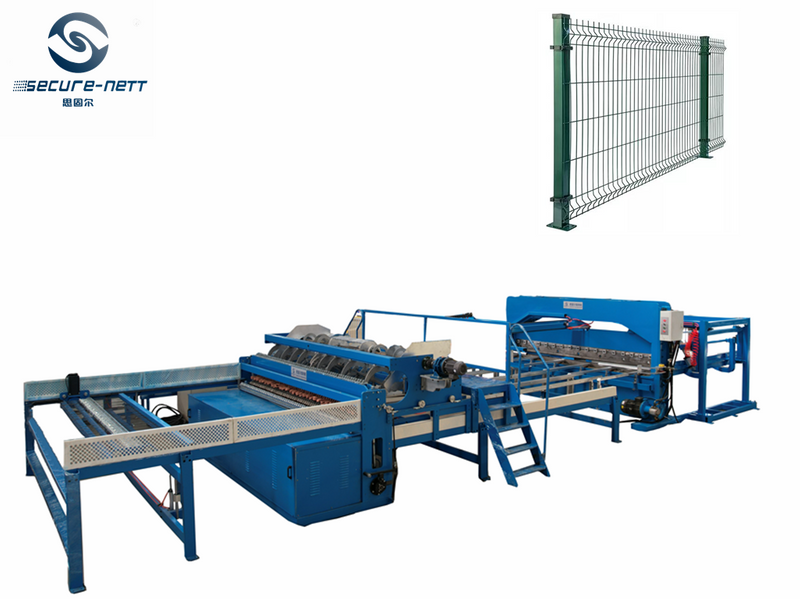

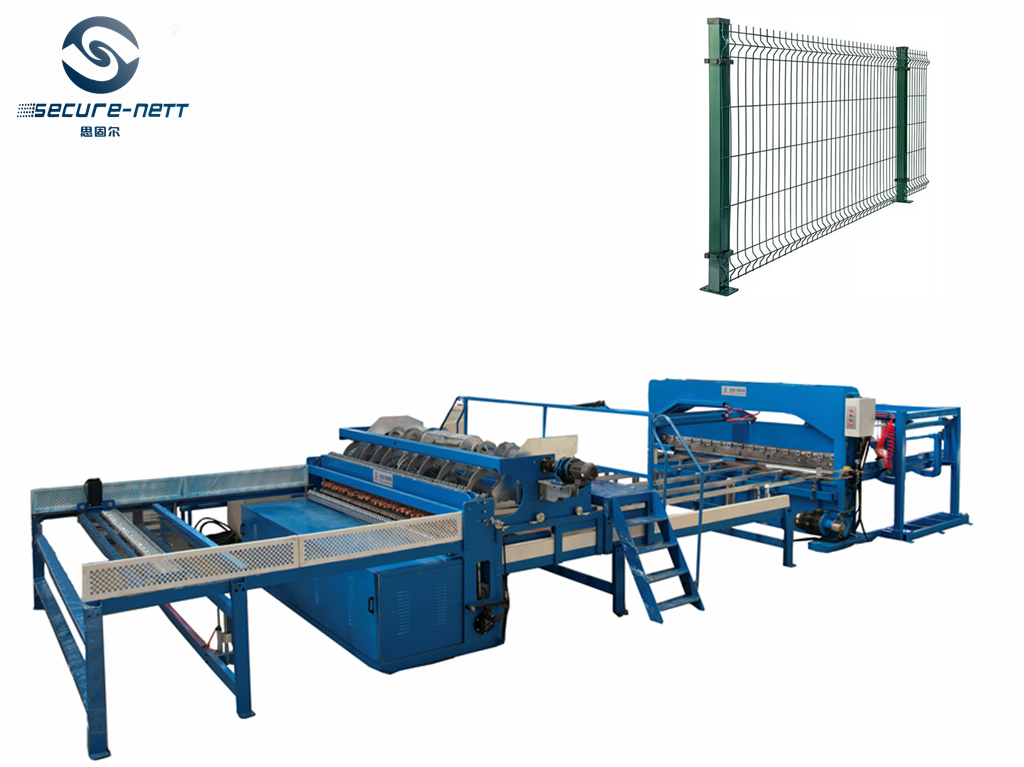

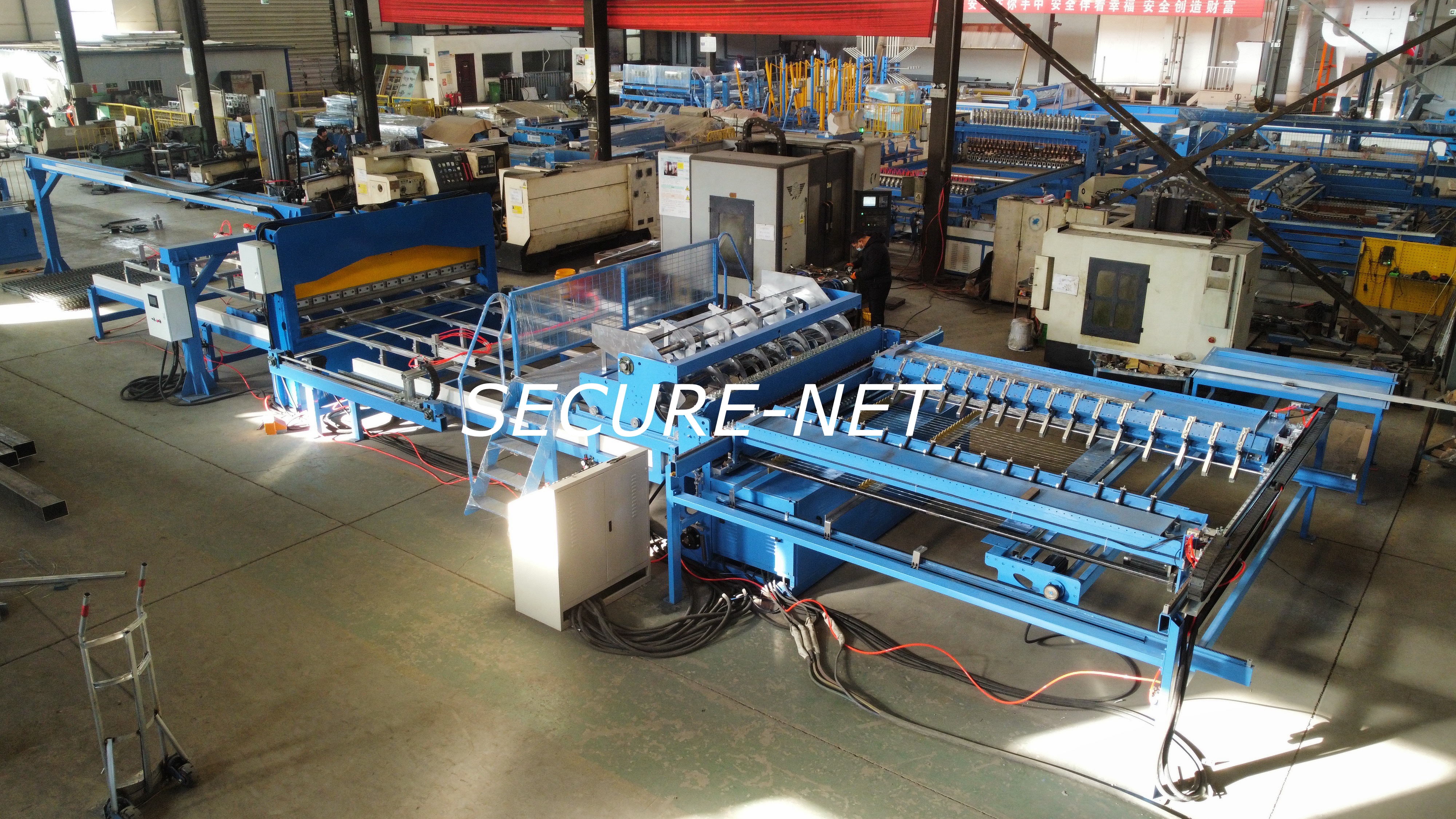

Full line picture:
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.
Program |
HWJX1500 |
HWJX2000 |
HWJX2500 | |
|
Wire diameter |
2.5-6.0mm | 2.5-6.0mm | 2.5-6.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
Number of electrodes | 31 | 41 | 48 | |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 50-300mm | 50-300mm | 50-300mm |
Electric capacity | 500KVA | 630KVA | 800KVA | |
Work strokes | 40-60/min | 40-60/min | 40-60/min | |
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |

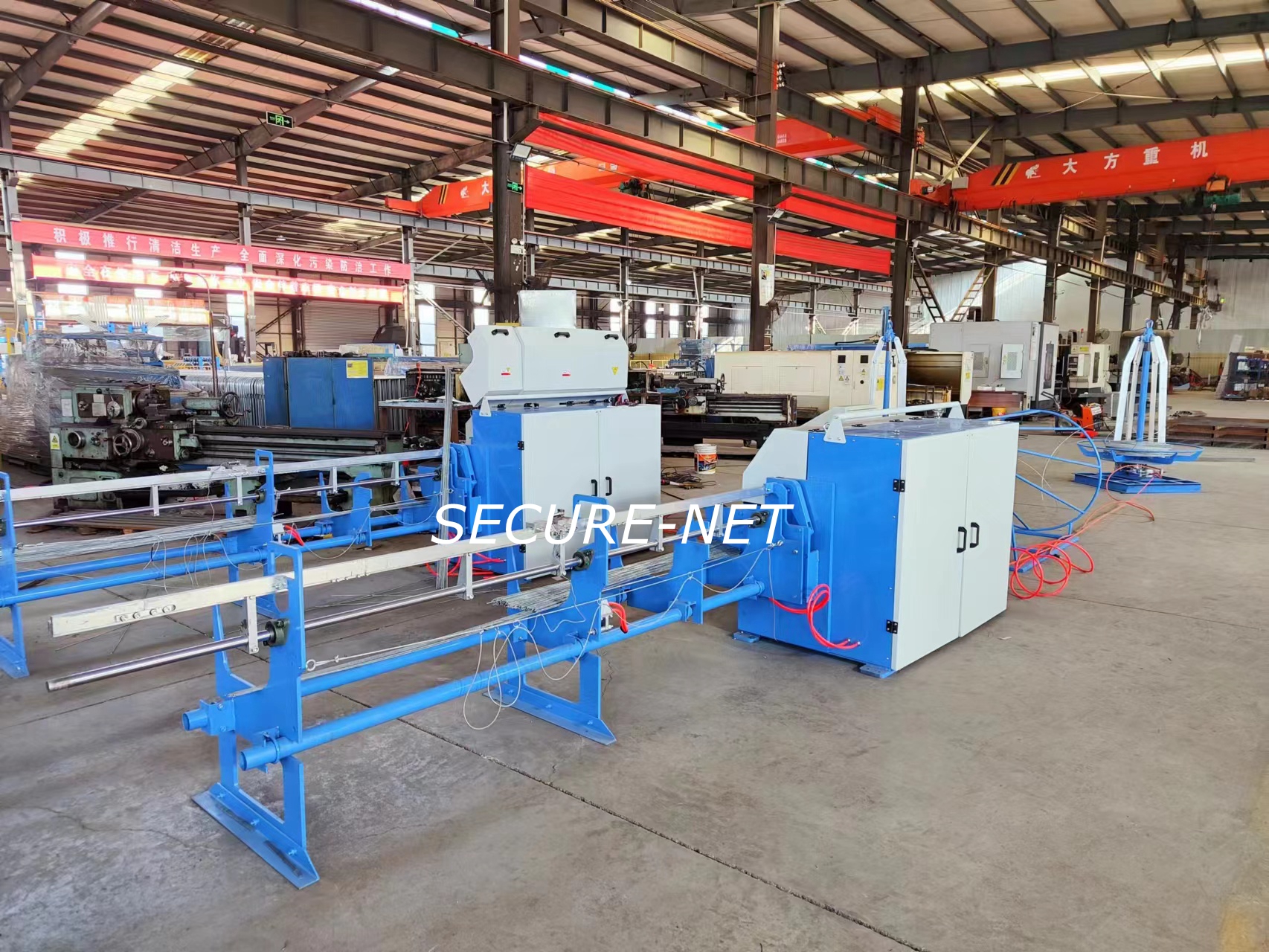

1.Wire straightener and cutting machine can straighten and cut stainless steel wire, cold-drawing wire and steel wire.
2.This kind of machine wire diameter is from 3.0 to 6.0mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4.This machine has many advantages, such as neat cutting mouth, less error and good functions.
5.Straighting&cutting speed:70-110m/min
6.Cutting length: as request

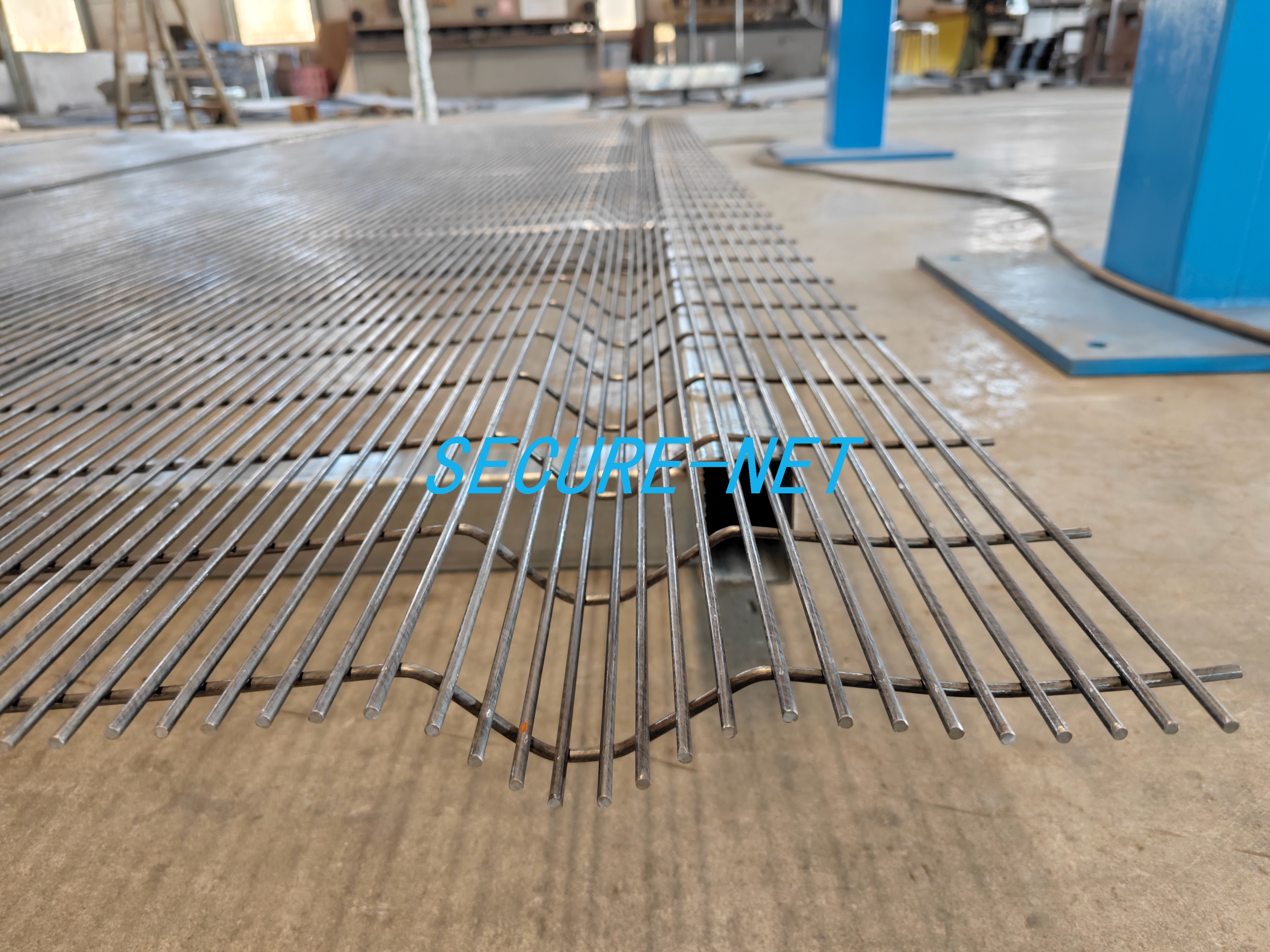

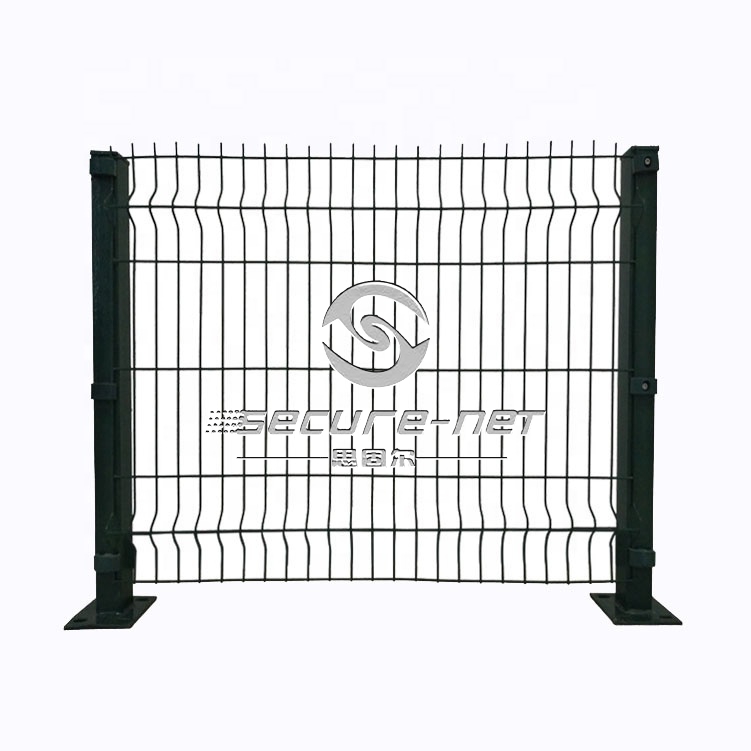

Wire Mesh Fence Curver Bending Machine use for bend the curver on fence pannel.
It also can be bend metal sheet.
Medel | Nominal Force | Width | Working Stroke | Motor Power | Length | Width | Height | Weight |
SK60/2500MM | 60 T | 2500mm | 120mm | 7.5 kw | 3340 | 1000 | 2100 | 4 |
SK80/2500MM | 80 T | 2500mm | 120mm | 7.5 kw | 3340 | 1000 | 2100 | 5 |
SK100/2500MM | 100 T | 2500mm | 120mm | 11 kw | 3340 | 1000 | 2100 | 6.1 |
SK160/2500MM | 160 T | 2500mm | 150mm | 15 kw | 3500 | 1100 | 2300 | 8.5 |
SK220/2500MM | 200 T | 2500mm | 150mm | 18.5 kw | 3500 | 1200 | 2400 | 12 |
